SW14 Passive Window

Product code: SW14-PASSIVE

SW14 Aluclad Passive window represents a unique Nordic design of high energy efficient windows. It's certified as Passive House Component by Passive House Institute in Germany.

Window profiles are protected by International Registration of Industrial Designs no DM/083922.


SW14 Aluclad Passive Window has:

  • Specific design suitable for Nordic countries. Its three gaskets ensure that profile system is highly insulated and condensation risks between frame and casement are minimized.
  • 50 mm triple glazing with 2 low-E coatings (Planitherm Ultra N or Planitherm ONE) and warm edge spacer (SGG Swisspacer Ultimate) gives excellent insulation and comfort.
  • Sun protection coatings can be used if needed (e.g. SKN174).
  • Aluminum profile system on exterior side improves the endurance of wooden window.
  • Espagnolette with locking points around the casement secures the window while closed.

You can read more about Passive House on the official web site of Passive House Institute. The short idea behind the passive window is that it is a certified passive house component. As a rule the standard size window 1.23 m x 1.48 m must achieve U-value 0.80 W/m²K or better in case of glazing Ug = 0.70 W/m²K used.

Standard Configuration

Passive HousePassive House
SafetySafety

Additional Options

Sound insulation glassesSound insulation glasses
Sun protectionSun protection
Passive HousePassive House
Near zero energy homeNear zero energy home
PAS24 solutionPAS24 solution

Note: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.

Certificates

passivehouse

Sound Insulation Rw = 33 dB (-2;-5) - with standard glazing
Frame Depth 132,5 mm (with alucladding)
Material of Sash and Frame Fingerjointed spruce
Glazing 50 mm 3-glazing; two LowE glasses; argon filled
Hardware PN UNI hinges; ROTO hardware; Hoppe handle
Aluminium Cladding NB! Aivailable as aluclad only
Thermal transmittance Uw = 0,63 W/m²K (1,23 x 1,48 m opening standard window)
Number of sash gaskets 3 sash gaskets
Color of sash gaskets Grey
Dimensions

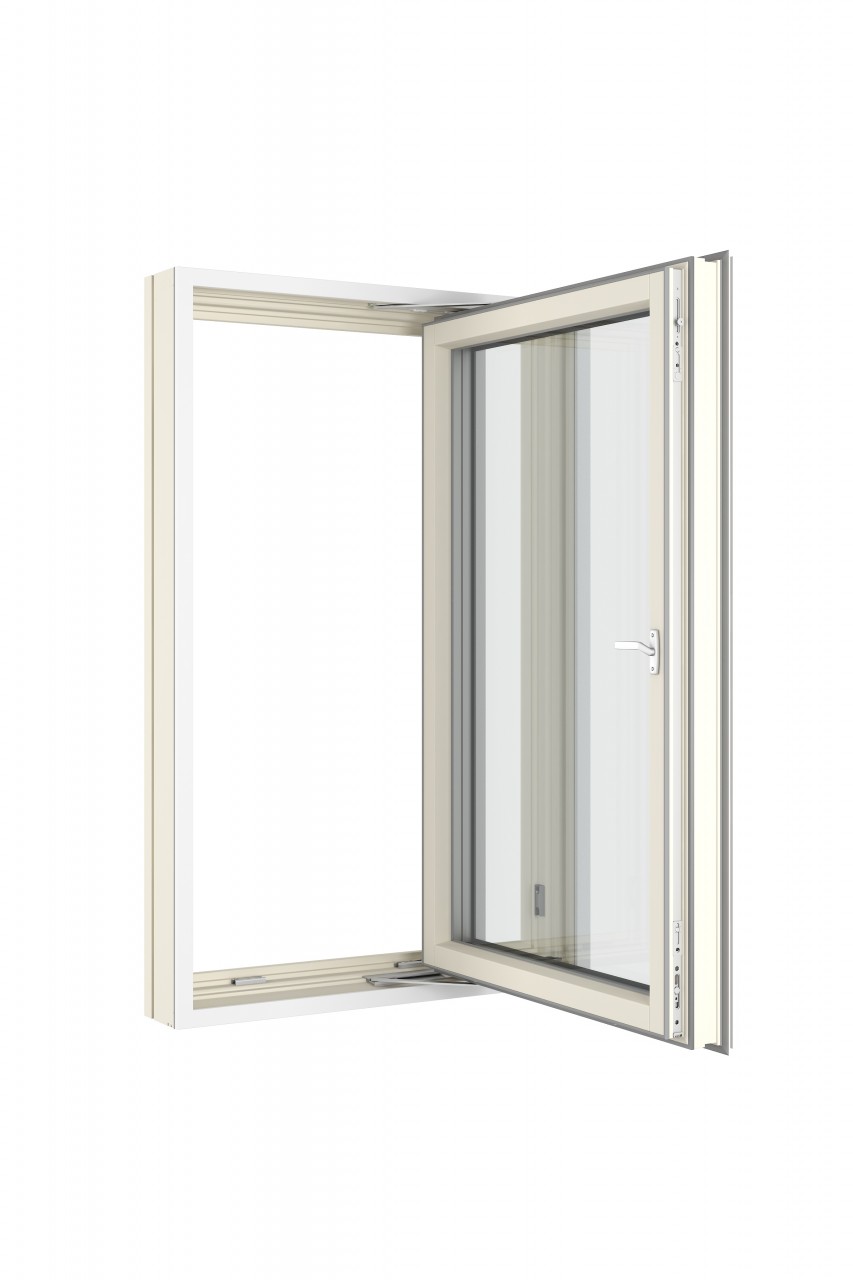

Sidehung:
Sash: W 650-969 mm x H 650-1669 mm

Side projecting:
Sash: W 500-869 mm x H 443-1669 mm

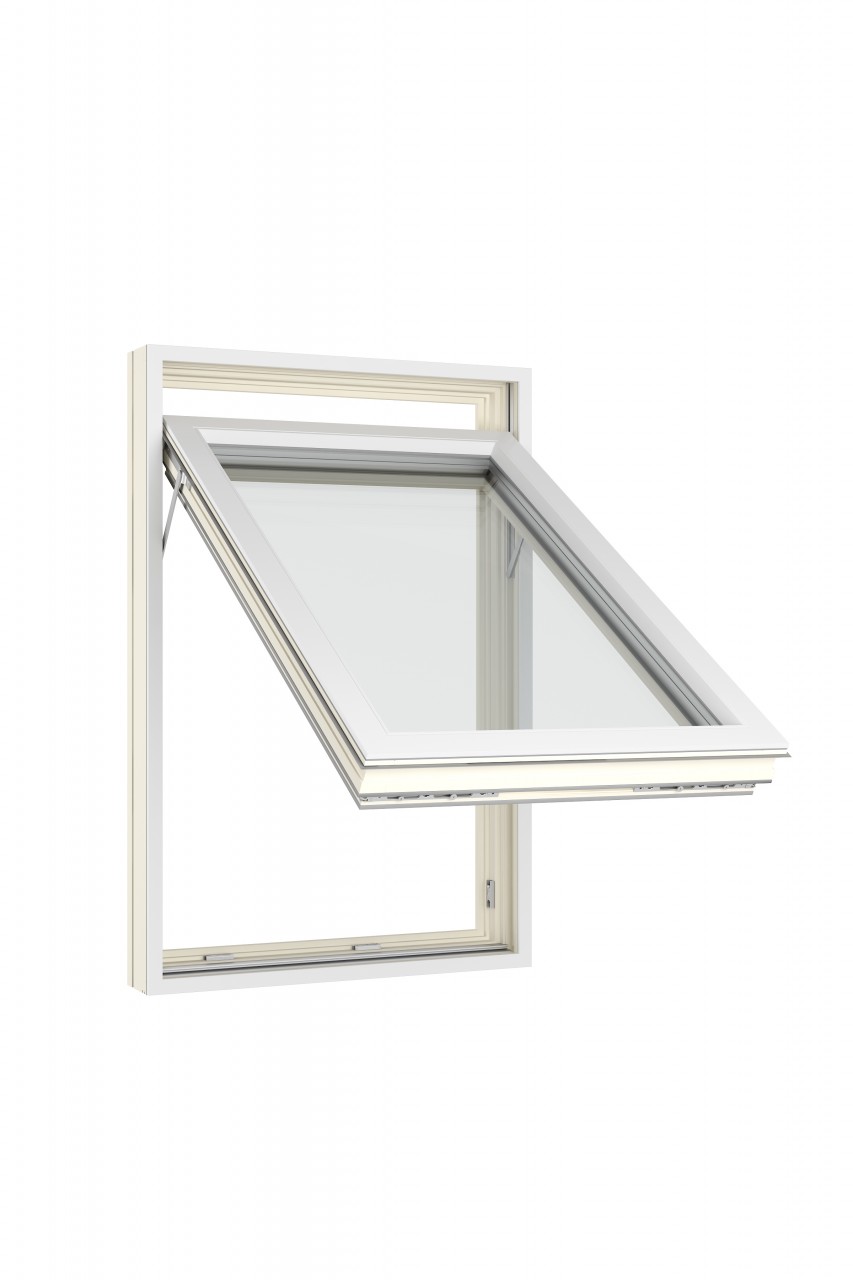

Top hung:
Sash: W 429-1569 mm x H 500-1569 mm

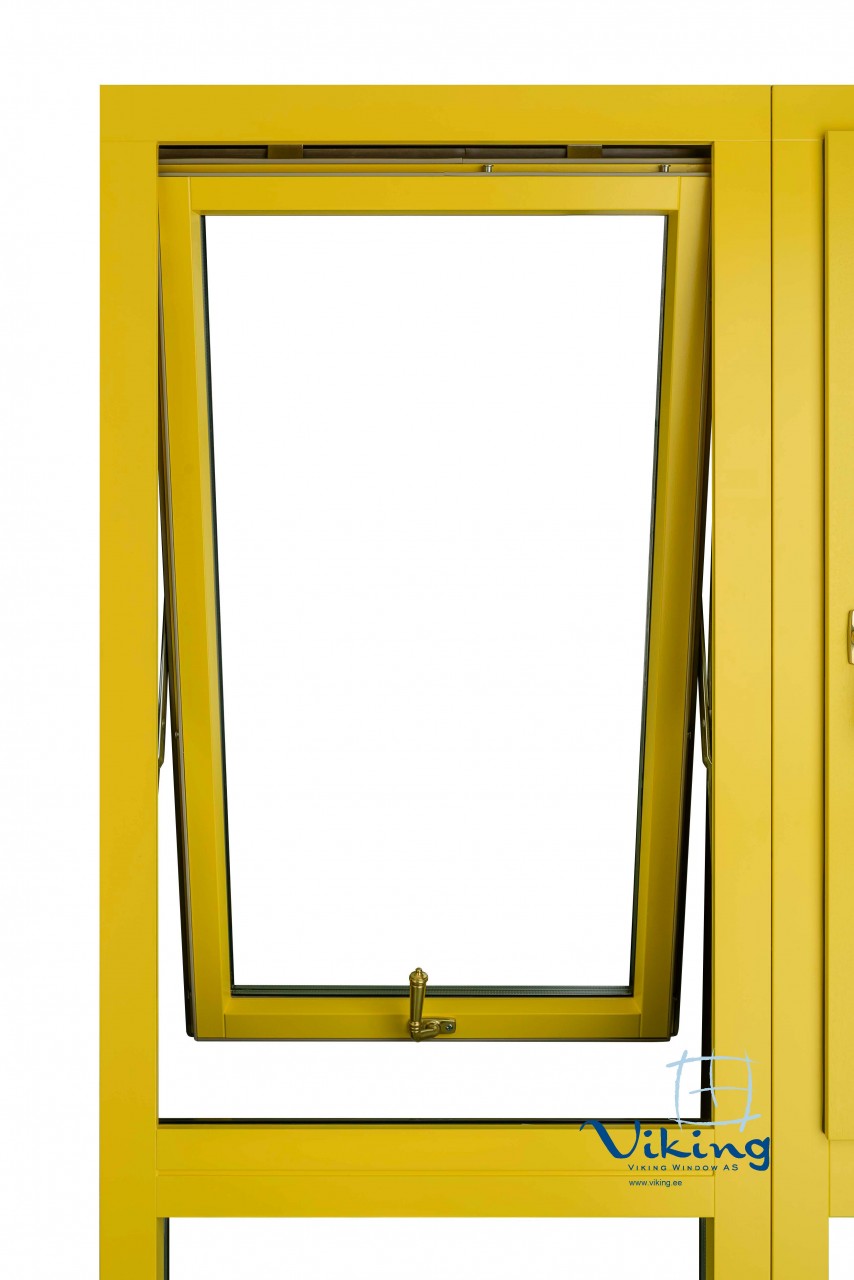

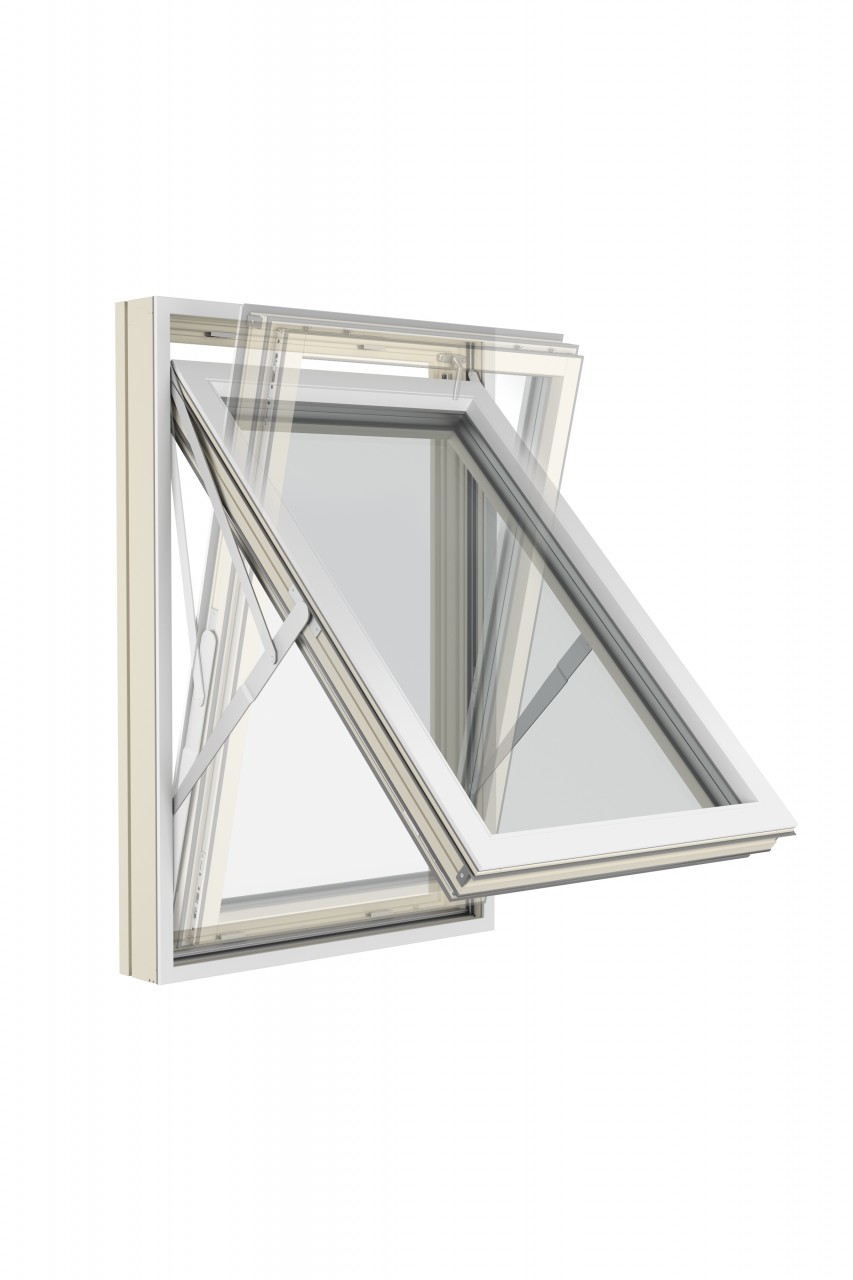

Top swing:
Sash: W 429-1669 mm x H 527-1626 mm

Side projecting
Top hung
Top swing
Fixed light
Fixed light

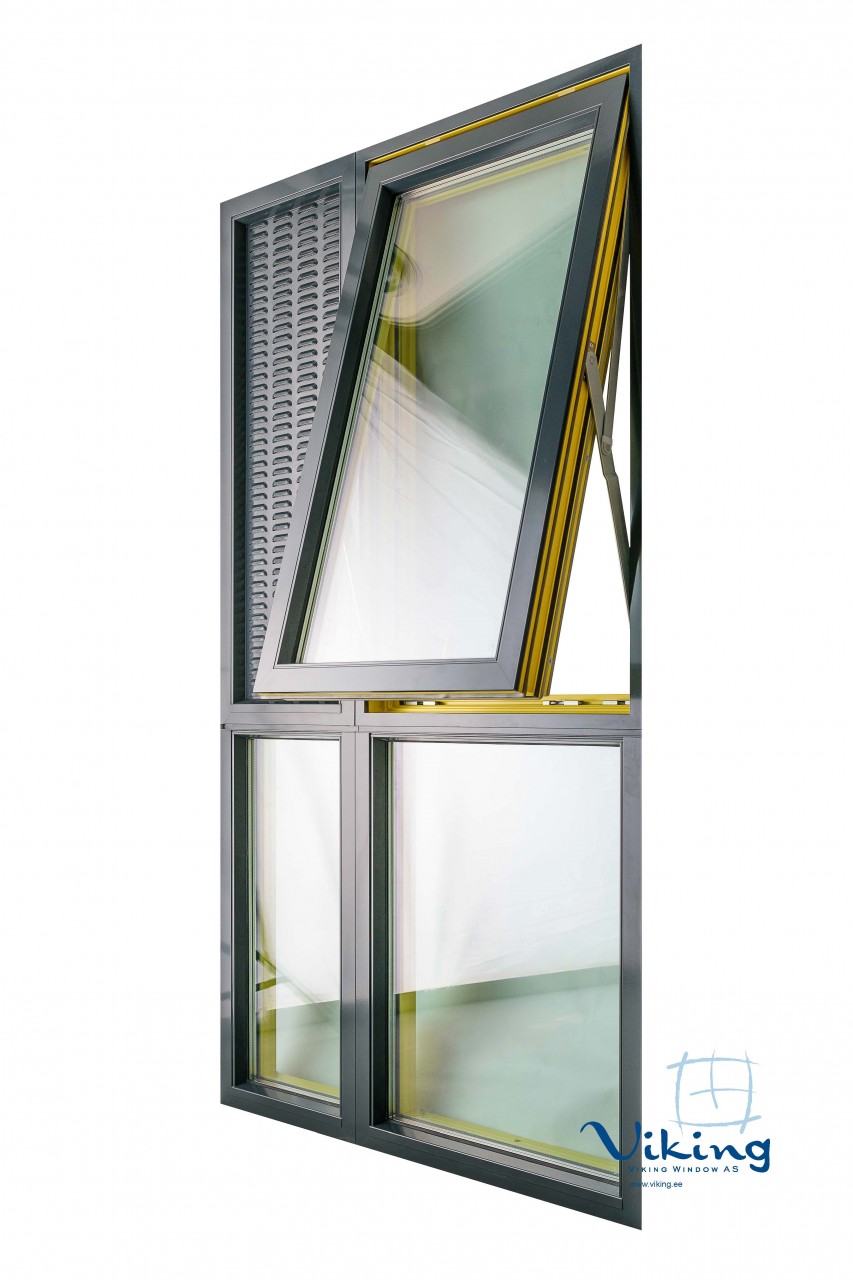

Multi light (e.g. transoms and mullions)
Multi light (e.g. transoms and mullions)

Material of frame and sash

Finger jointed spruce; Nordic timber quality class A1-A3

Finishing

Teknos Aquatop and/or VRC

varvikaart 300px

RAL; NCS and translusent systems:

Värvivalik



Glasing options

Click on the picture below to browse for more:

glazing options 1



Selection of handles




fix 83 200px

Hoppe 0710LVK U71Z 200px

Hoppe 0710EVKS 6 200px

Titon 200px
Fix 83 Hoppe 0710LVK-U71Z Hoppe 0710EVKS-6 Titon




Window boards

Wooden boards:
Aknalaud A1.0 150px Aknalaud A1.1 150px Aknalaud A2.0 150px Aknalaud A2.1 150px
A 1.0 A 1.1 A 2.0 A 2.1
Aknalaud A3.0 150px Aknalaud A3.1 150px Aknalaud A4.0 150px Aknalaud A4.1 150px
A 3.0 A 3.1 A 4.0 A 4.1

Fiber boards:
Aknalaud A1.0 valge150px Aknalaud A2.0 valge150px Aknalaud A3.1 valge150px Aknalaud A4.0 valge150px
A 1.0 A 2.0 A 3.1 A 4.0

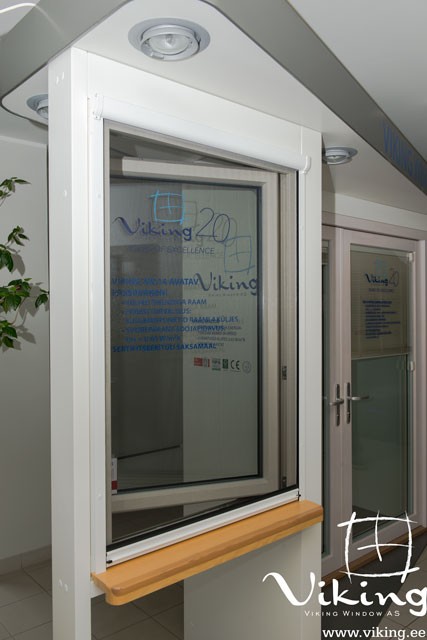

Fly screens

SW14 fly screen types:

003 Puit putukavork hingedel 200px 004 Puit putukavork klipsidel 200px 006 FISKOSTAR PUTUKARULOO kinni 200px 008 GREENETEQ PUTUKARULOO kinni 200px
Wooden screen on hinges Wooden screen on clips Fiskostar blindfold GreenteQ blindfold


NB! For outward opening windows fly screens are fixed on the internal side - thus there must remain sufficient space for the screen frames or blindfold guide rails. Please discuss with the sales representative any further, more detailed quiestions!



Click on the picture below to browse different net materials:

flyscreens gallery 480px









Drawings: PDF and DWG
