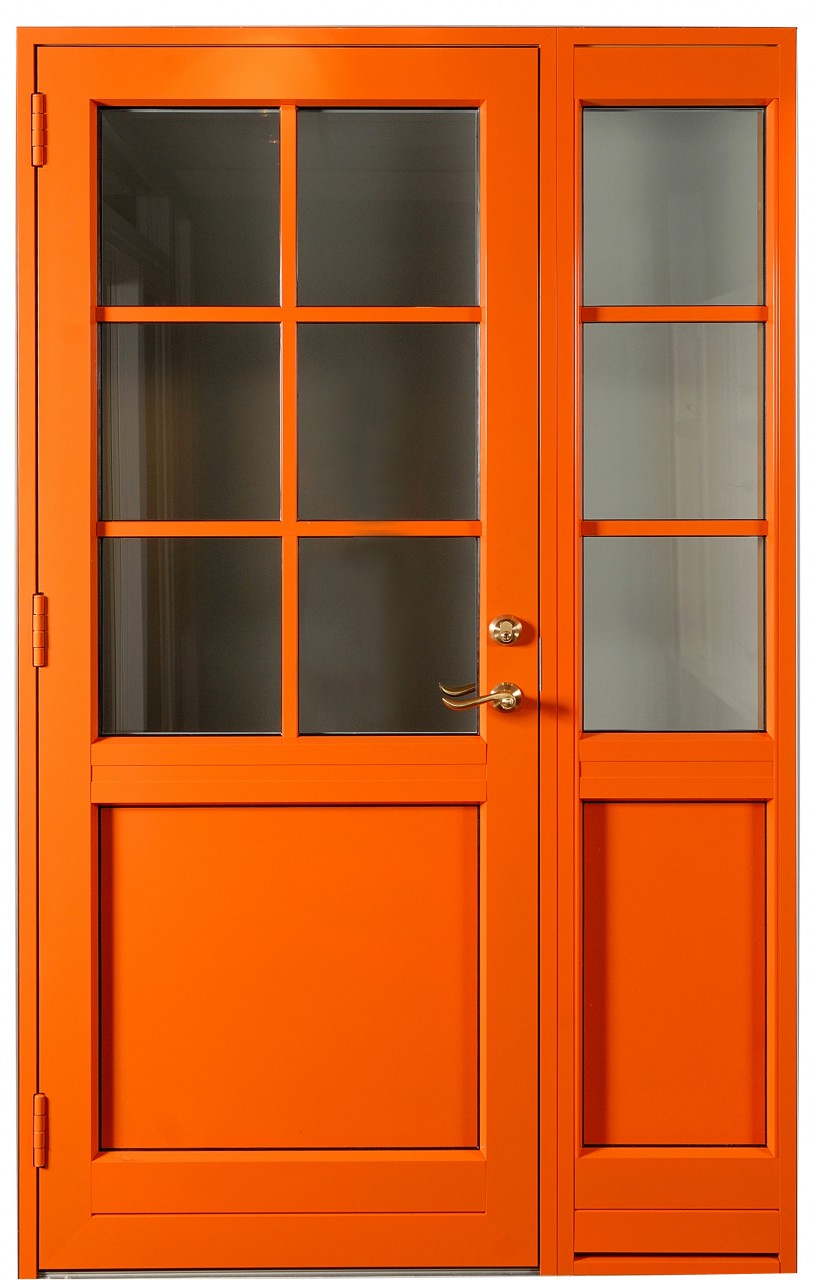

Viking 12 Door

Product code: UV-V12

Viking Window manufactures both outward and inward opening traditional entrance doors, patio and balcony doors *. Doors are made of solid wood profiles. Double glazing or insulated panels are used as infills. Thermal transmittance Uw = 1.4 W/m2K.


It is possible to manufacture single or double leaf doors. Finishing according RAL, NCS (paint) or Vikings (lacquer) tone catalog by customer's choice preference. Available as aluminium clad door too.

Closing system by Swedish lock manufacturer ASSA: hinges and three-point locking espagnolette. Patio and balcony doors have more simple locking system.

Illustration for different models. Discuss options with sales representative!

----------

* For Viking Window AS door = door set (e.g. leaf, frame and threshold; as a standard we supply doors with handles and cylinders)

Standard Configuration

PassablePassable

Additional Options

SecuritySecurity
Sun protectionSun protection

Note: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.

Sound Insulation Rw = 33 dB (-1;-4) - standard glazing

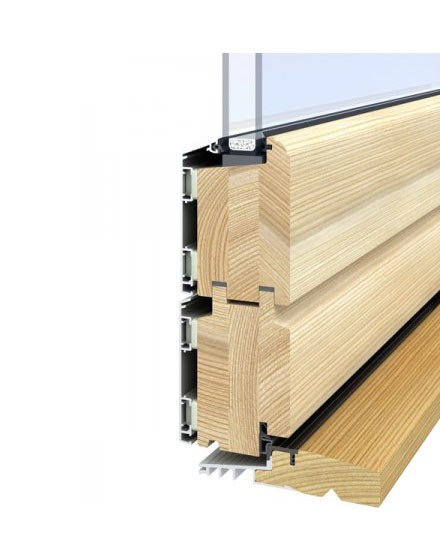

Frame Depth 116 mm (128,5 mm with alucladding)
Material of Sash and Frame Door leaf: insulated panel or glue-lam profiles; door frame: qlue-lam pine; quality class A1-A3; aluminium/oak threshold
Glazing 26 mm 2-glazing, one LowE glass, argon filled; or insulated panels
Hardware Abloy hinges (aluclad with dr Hahn); Fix espagnolette and handle; ASSA cylinder
Aluminium Cladding Optional external alucladding
Thermal transmittance Uw = 1,40 W/m²K (0,9 x 2,1 m door with standard glass)
Color of sash gaskets Grey

Material of frame and sash

Frame: Glue-lam pine; quality class A1-A3

Door leaf: insulated panel

Additional option: profile door of glue-lam pine; quality class A1-A3

Finishing

Teknos Aquatop and/or VRC

varvikaart 300px

RAL; NCS and translusent systems:

Värvivalik

Glasing options

Click on the picture below to browse for more:

glazing options 1

Glazing bar options

COPY of VIKING 12 aken 02 small COPY of VIKING 12 N alu aken 02 small





Selction of handles


1918c

1918m

1918mm

1918to
ASSA 1918 chromium ASSA 1918 brass ASSA 1918 matte barss ASSA 1918 dark oxide


1956c

1956m

1956mm

1956to
ASSA 1956 chromium ASSA 1956 brass ASSA 1956 matte brass ASSA 1956 dark oxide


6638c

6638m

6638mm

6638to
Assa 6638 chromium Assa 6638 brass Assa 6638 matte brass Assa 6638 dark oxide


assa6640c

assa6640m

assa6640mm

assa6640to
Assa 6640 chromium Assa 6640 brass Assa 6640 matte brass Assa 6640 dark oxide

fix 83 200px assa 835S handle 200px
Fix 83 handle for balcony door ASSA 835S handle for balcony door

Blank ASSA6638 250px Blank ASSA6640 250px Blank MILA ProSecure 250px Blank toruk 250px
Panel door with ASSA 6638 handle Panel door with ASSA 6640 handle Panel door with Mila ProSecure handle Panel door with pull handle





Panel door leaf is a composite product of timber frame covered with weather proof plywood "skins" (including moisture protection) and filled with insulation material. With the modern CNC technology different grooves and glazing options can be used for design purposes.



Panel door standard designs

  • Standard sizes are width 880-1078 mm and height 2040-2300 mm.
  • Door design options and hardware types can be found on the illustrations below.
  • Lead time 3 weeks.
  • Lower price compared to special design doors.
  • Ask for more detailed information from sales representative!



Click on the image below to see standard design options:



PR.100 BLANK 150px PR.109 FULL GLASS 150px PR.110 HALF GLASS 150px PR.111 SAEBY 320px PR.112 7grooves 150px PR.113 narrow glass 150px PR.114 28mm grooves 150px
PR.100   PR.109 PR.110  PR.111   PR.112**  PR.113  PR.114**



NB! Pictures above are illustrations - specific tone, glass type, hardware configuration may be different than current illustrations.


** Pattern on both sides


Profile doors:

Profile door leaves are assembled of glue-lam timber profiles. Insulated glazing of panels can be used.



Available door designs (click on the images below to see more):



2-glazed doors



door designs





Panel doors:

Timber door PDF & DWG



Profile doors:

Drawings: Timber Door PDF & DWG

Drawings: Aluclad Door PDF & DWG
