DK13 wooden window (2- or 3-glazing)
Standard Configuration
0,9 W/m²KAdditional Options
Sound insulation glasses
Safety
Sun protection
PAS24 solutionNote: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.
| Aluminium Cladding | Optional external alucladding |
| Glazing | 40 mm 3-glazing, two LowE glasses, argon filled or 26 mm 2-glazing, one LowE glass; argon filled |
| Frame Depth | 78 mm (111 mm with alucladding) |
| Sound Insulation | Rw = 35 dB (-1;-5) - standard glazing |
| Material of Sash and Frame | Glue-lam pine; quality class A1-A3 |
| Number of sash gaskets | 2 sash gaskets |
| Color of sash gaskets | White, grey, beige, brown |
| Thermal transmittance | Uw = 0,94 W/m²K (3-glazed opening standard window) |
| Hardware | ROTO; Hoppe handle |
| Security | PAS24 solution option |
| Air tightness | Class 4 (600 Pa) |
| Water tightness | Class E900 (900 Pa) |
| Resistance to wind load | Class 5C (2000 Pa) |
| Dimensions | Tilt and turn opening: Turn opening (sidehung): Tilt opening: Tilt before turn opening: (i.e TBT): |
Material of frame and sash
Glue-lam pine, Nordic timber quality class A1-A3
Finishing
Teknos Aquatop
RAL; NCS and translusent systems:
Additional option
Low threshold balcony door
 |
 |
| View from inside | View from outside |
Glasing options
Click on the picture below to browse for more:

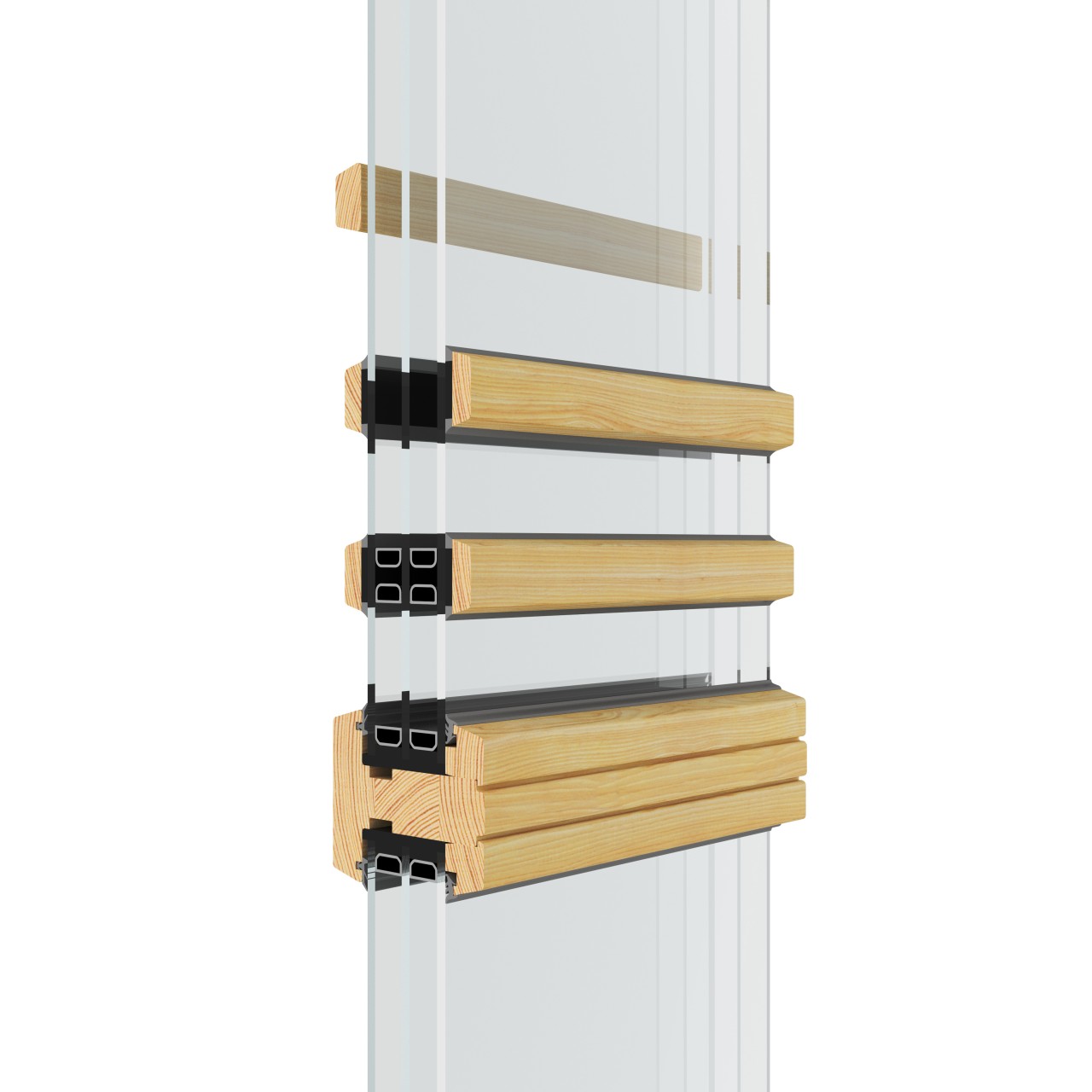

Glazing bar options on the glass
(Click on the icon to see larger image)
 |
 |
 |
 |
| Glazing bars (26 mm) 01-00-01 outside Norwegian, inside Norwegian |
Glazing bars (26 mm) 01-SWS-01 outside Norwegian, inside Norwegian + SWS |
Glazing bars (26 mm) 01-00-03 outside Norwegian, inside Swedish |
Glazing bars (26 mm) 01-SWS-03 outside Norwegian, inside Swedish + SWS |
 |
 |
 |
|
| Glazing bars (26 mm) 03-00-03 outside Swedish, inside Swedish |
Glazing bars (26 mm) 03-SWS-03 outside Swedish, inside Swedish+ SWS |
Glazing bars (16 mm) 05-00-05 inside and outside 16mm bar |
|
Selection of handles
(Click on the icon to see larger image)
 |
 |
 |
| Hoppe London 013S-U34 chromium satin | Hoppe London 013SV-U34 silver | Hoppe London 013-U34 golden |
 |
 |
 |
| Hoppe Tokyo 0710S-U26 chromium | Hoppe Tokyo 0710SV-U26 chromium satin | Hoppe Tokyo 0710-U26 champagne |
Window boards
| Fiber boards: | |||
 |
 |
 |
 |
| A 1.0 | A 1.1 | A 2.0 | A 2.1 |
 |
 |
 |
 |
| A 3.0 | A 3.1 | A 4.0 | A 4.1 |
| Wooden boards: | |||
 |
 |
 |
 |
| A 1.0 | A 1.1 | A 2.0 | A 2.1 |
 |
 |
 |
 |
| A 3.0 | A 3.1 | A 4.0 | A 4.1 |
Fly screens
Standard fly screen material is dark fiberglass mesh:
Illustrations below introduce different types of fly screens applicable for DK13 window and also alternative material solutions for the screens:
DK13 window fly screen types:
 |
 |
 |
| Aluminium screen | Aluminium screen on hinges | Aluminium color options |
NB! For intward opening windows fly screens are fixed inside the frame in front of the sash or on the external side of frame - thus there must remain sufficient space for the screen frames. Please discuss with the sales representative any further, more detailed quiestions!
Click on the picture below to browse different net materials:

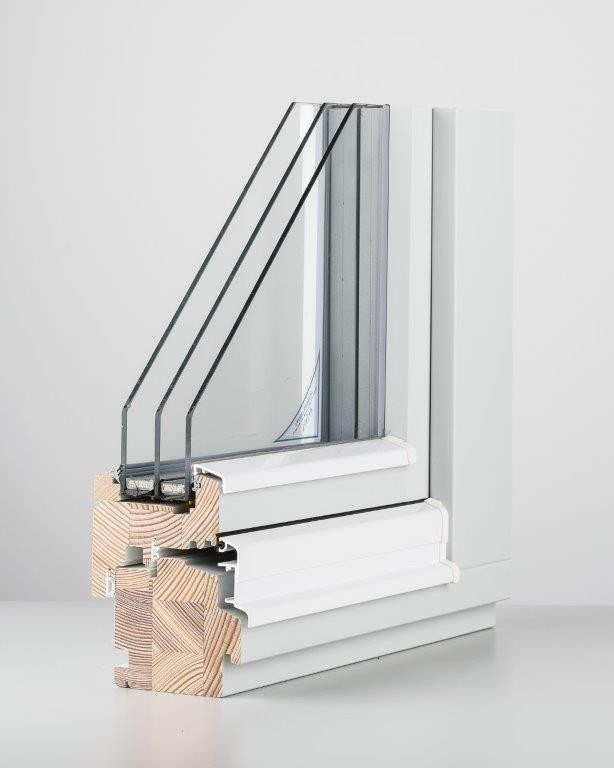

Inward opening (also knonw as tilt-and-turn) windows are traditional to Central Europe. Viking DK13-3k Window is a solid wooden window with the 78 mm profile system and a glazing unit with two low-E and one regular glass, Argon filled cavities and the total thickness of 40 mm. For the warm edge solution it is recommended to use SGG Swisspacer spacer bars as a warm edge solution.
Typical opening type is side hung (turn) combined with the ventilation opening (tilt from top of the sash): tilt-and-turn window. Thermal transmittance of the standard window is Uw = 0,94 W/²K

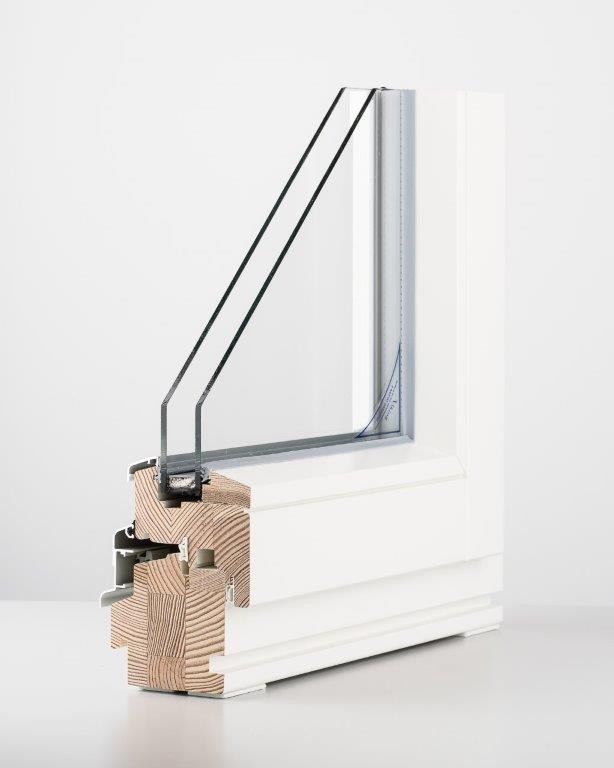

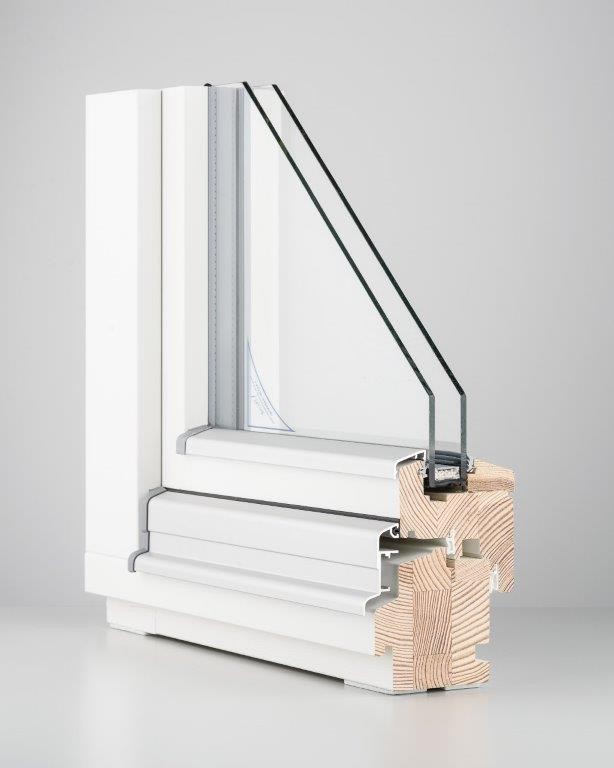

DK13 window is also available as 2-glazed window. in this case Uw = 1,29 W/²K.
