Innova Sliding Door (3-glazing)

Product code: INNOVA

Standard Configuration

Passive housePassive house

Additional Options

Sound insulation glassesSound insulation glasses
sun protectionsun protection
PAS24 solutionPAS24 solution
near zero energy homenear zero energy home
energy efficientenergy efficient

Note: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.

Aluminium Cladding Optional external alu cladding
Glazing 52 mm 3-glazing, two LowE glasses, argon filled
Frame Depth 184 mm (196 mm with alucladding)
Sound Insulation Rw = 33 dB (-2;-5) - standard 3-glazing
Material of Sash and Frame Glue-lam pine; quality class A1-A3
Number of sash gaskets 2 sash gaskets
Color of sash gaskets Black, grey
Thermal transmittance Uw = 0.75 W/m²K
Hardware Roto Innova sliding door hardware
Security PAS24 solution option
Air tightness Class 4 (600 Pa)
Water tightness Class E1350 (1350 Pa)
Resistance to wind load NPD


W 3 020 mm x H 2 596 mm (max sash width 1 500 mm)


L 5 900 mm x H 2 596 mm (max sash width 1 500 mm)


Material of frame and sash

Glue-lam pine, Nordic timber quality class A1-A3


Teknos Aquatop

RAL; NCS and translusent systems:



Glasing options

Click on the picture below to browse for more:

glazing options 1

Drawings: Timber door PDF and DWG

Drawings: Aluclad door PDF and DWG


Installation sketches PDF and DWG

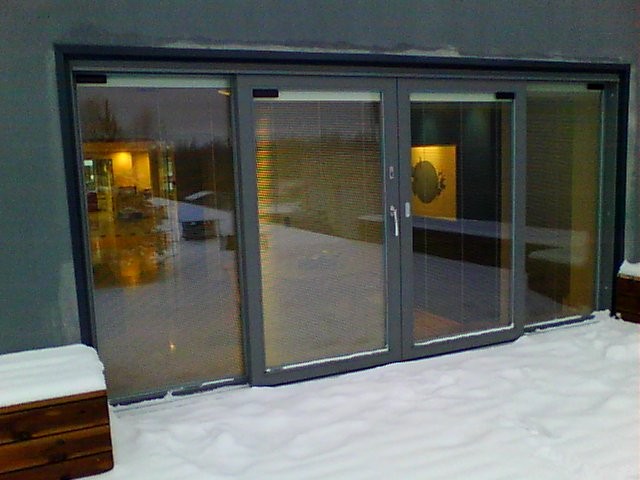

New innovative sliding door design now available: outward opening sliding patio door – Viking Innova.

With outward opening sliding leaf Innova Sliding Door is both storm proof and very comfortable to operate. The hardware moves door leaf outwards and unique roller system on the threshold and top rail makes the door steady and at the same time easy to move sideways. While closing, the door leaf moves inwards against the gaskets thus providing excellent weather tightness (up to 1 350 Pa rain tightness).

Sleek profiles, no sash in the fixed side (panoramic solution) and triple glazing ensure sufficient indoors light and significantly high energy efficiency: U-value 0.72 W/m²K (for standard size 2.0 m x 2.1 m door).

Hardware enables active leaf up to 1.5 m wide (thus the total width of the door can be up to 2.92 m); max height of the door is 2.5 m.

Aluclad option also availble!

PAS24 security and C-scheme options also available.
