Lift and Slide Patio Door

Product code: GULU

Lift and slide patio door is best for locations as balckonies, terraces and other places where there is not enough room for traditional outward or inward opening solutions, or where is a need for large glazed areas.


NB! The door construction has been upgraded since April 2018 - see drawings in Download tab!



Viking Window sliding patio doors are equipped with high quality and modern GU-934-H hinges system which has load bearing capability 300 kg. Active leafi is located on inner side of door ensuring functionality for winter times - ice and snow does not damage rails. The espagnolette and strong handle enable convenient operating and possibility to close door in ventilation position.

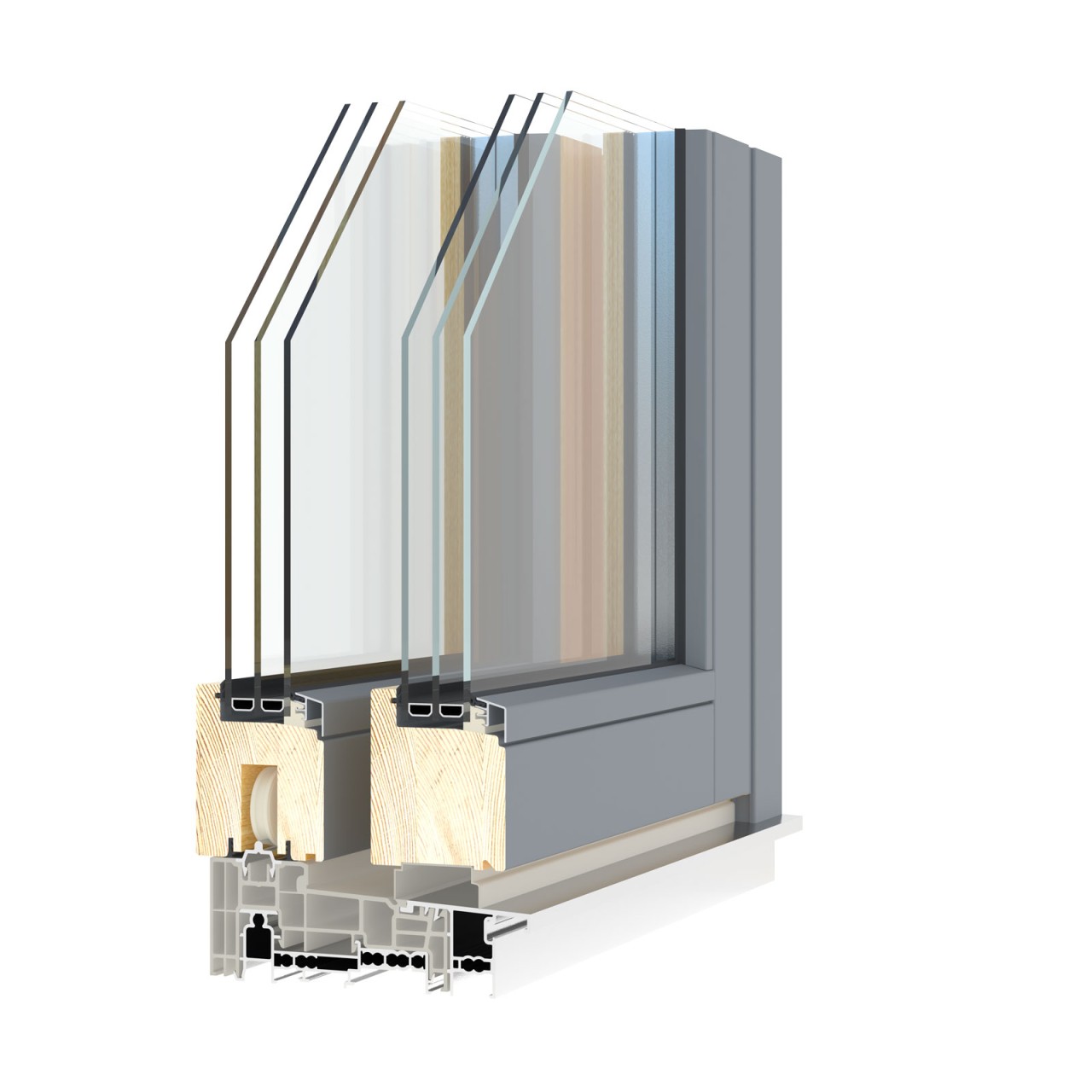

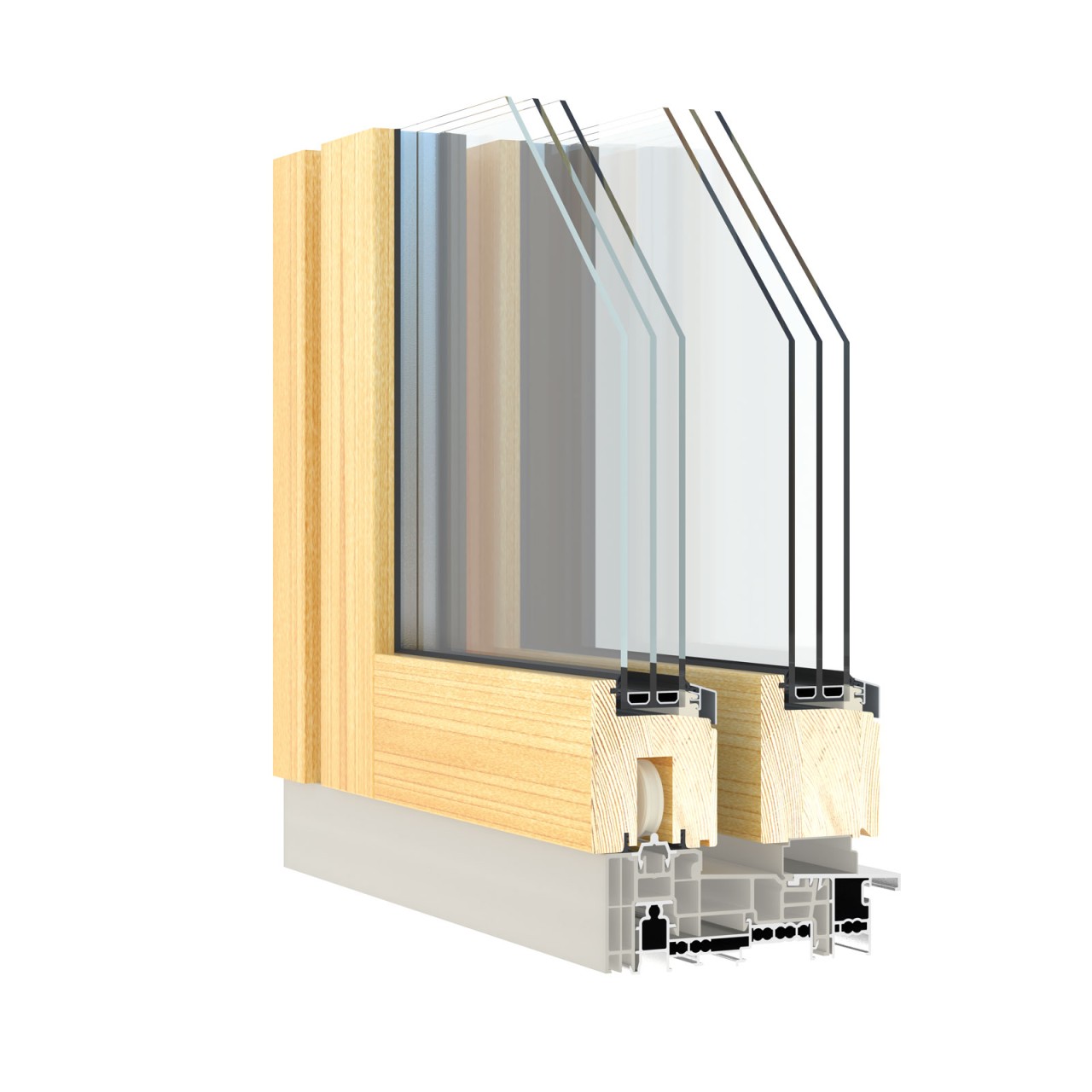

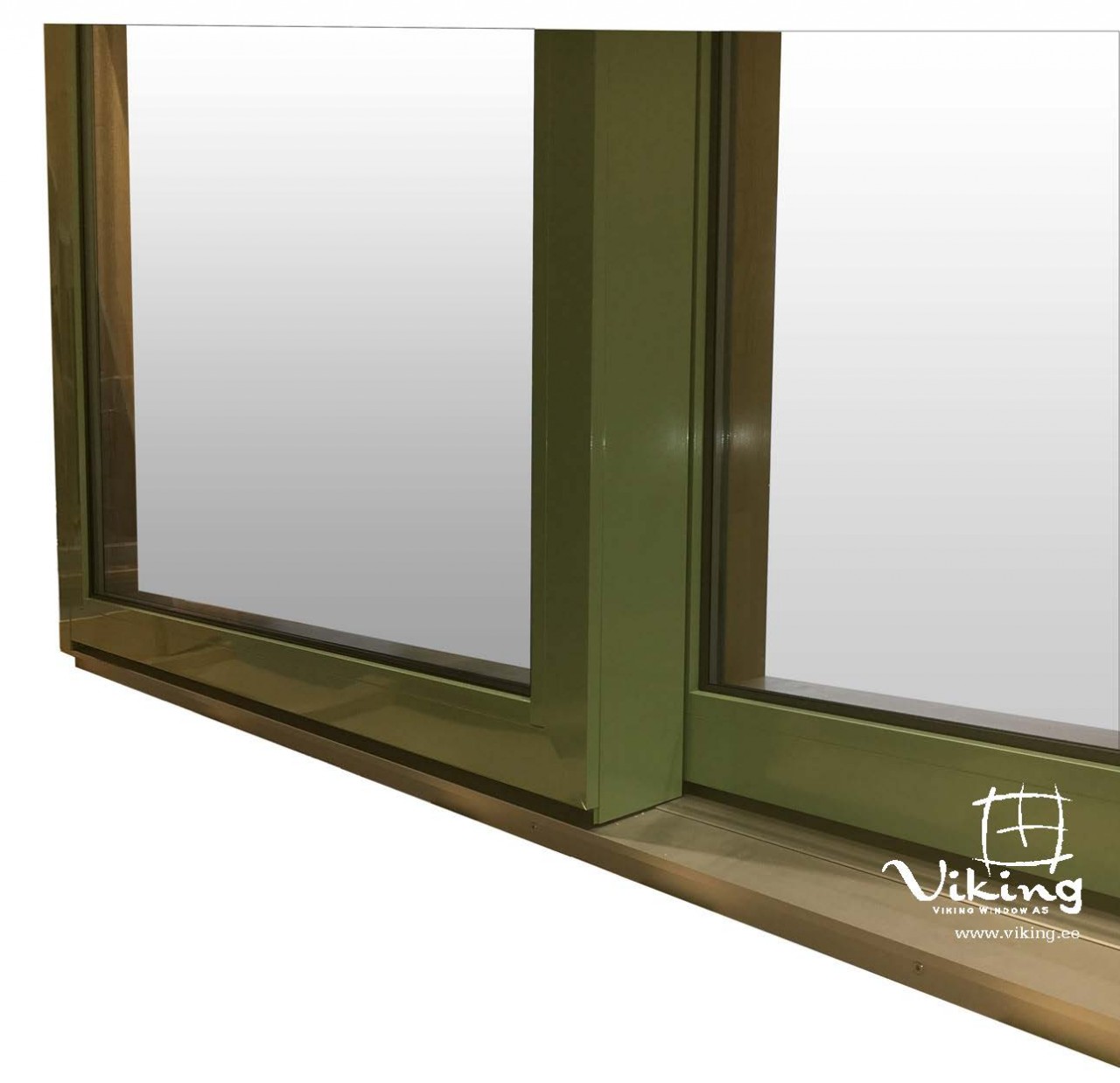

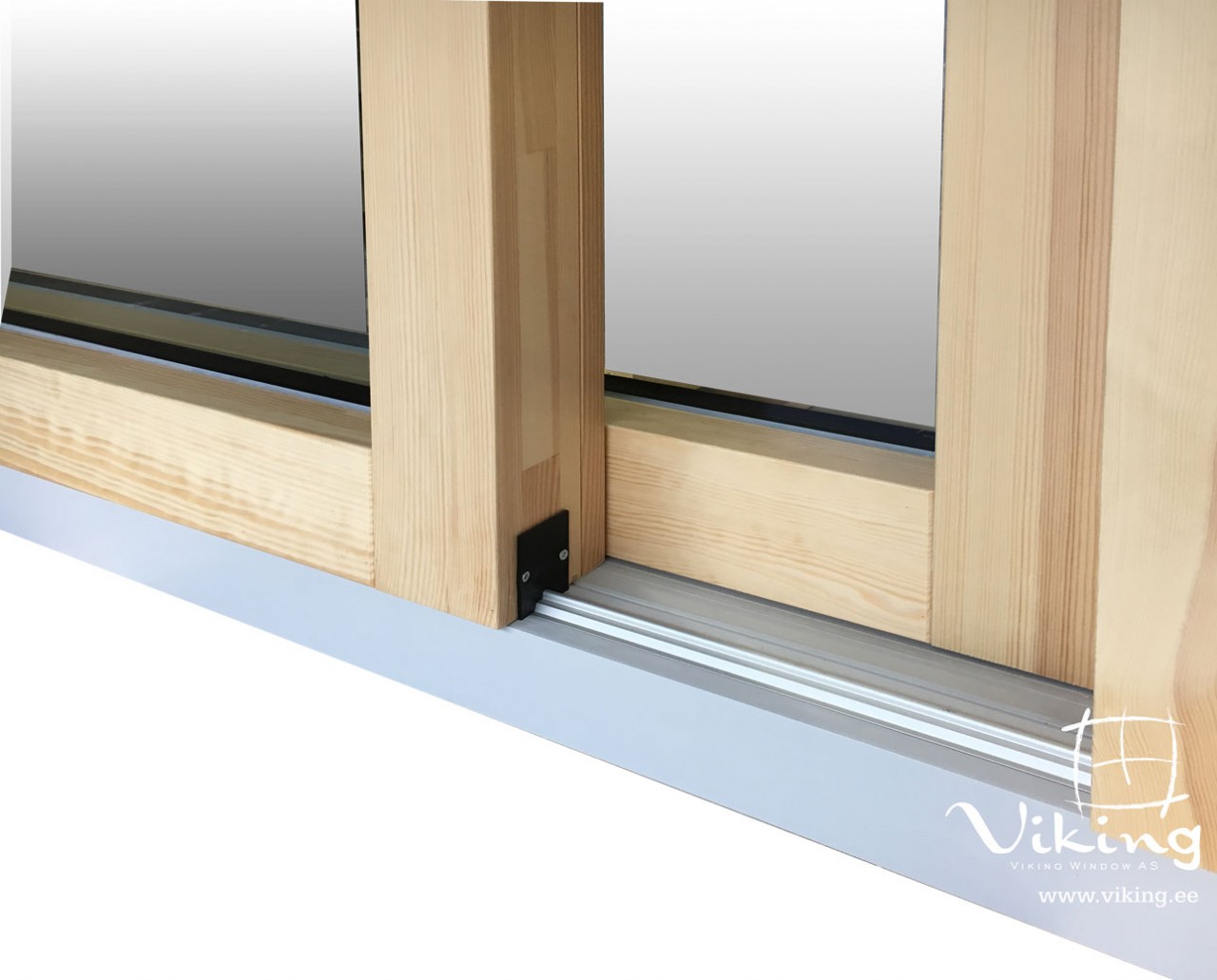

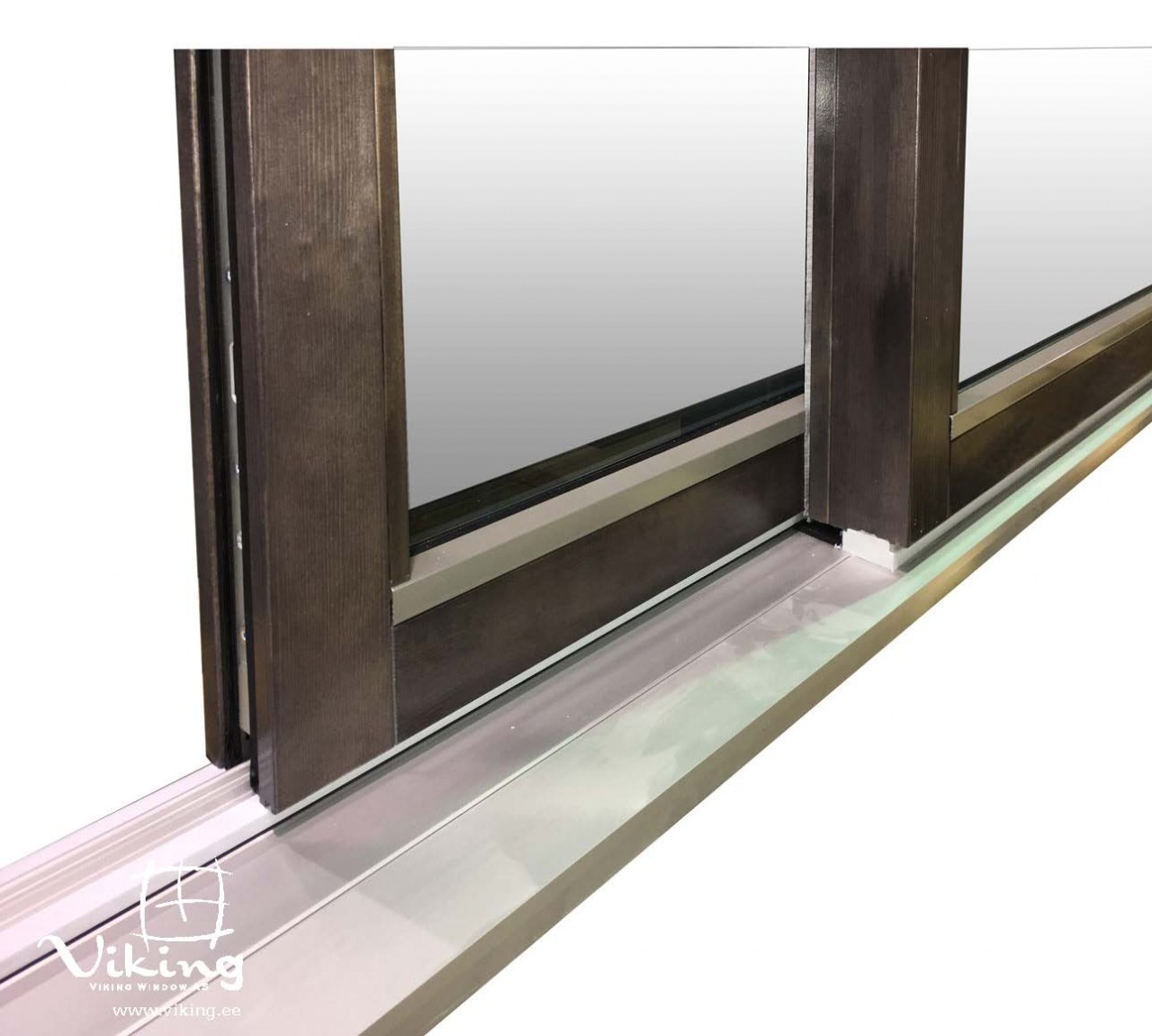

Sliding patio door is available both as wooden and aluminium clad door. Traditional double glazing (Ug = 1,1 W/m2K) or energy efficient triple glazing (aluclad door 52 mm glazing unit  Ug = 0.52 W/m2K; timber door 40 mm glazing unit Ug = 0.64 W/m2K) can be used.

Finishing according RAL, NCS (paint) or Vikings (lacquer) tone catalog by customer's choice preference.

Standard Configuration

Energy EfficientEnergy Efficient

Additional Options

sound insulation glassessound insulation glasses
Sun protectionSun protection
PAS24 solutionPAS24 solution

Note: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.

Sound Insulation Rw = 34 dB (-1;-4) - standard 3-glazing
Frame Depth 184 mm (202 mm with alucladding)
Material of Sash and Frame Glue-lam pine; quality class A1-A3
Glazing 40 mm 3-glazing, two LowE glasses, argon filled (additional option 2-glazed)
Hardware GU lift and slide door hardware

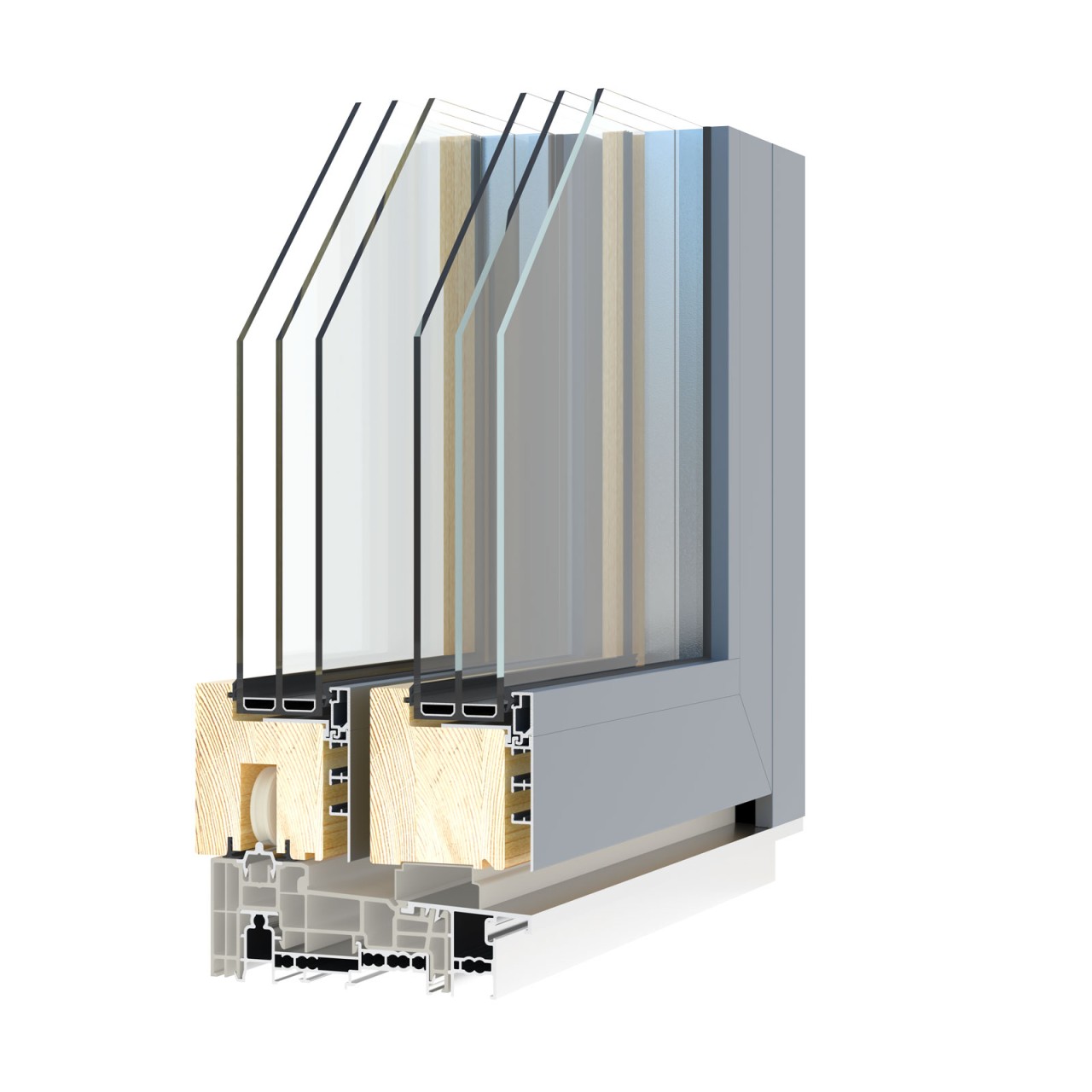

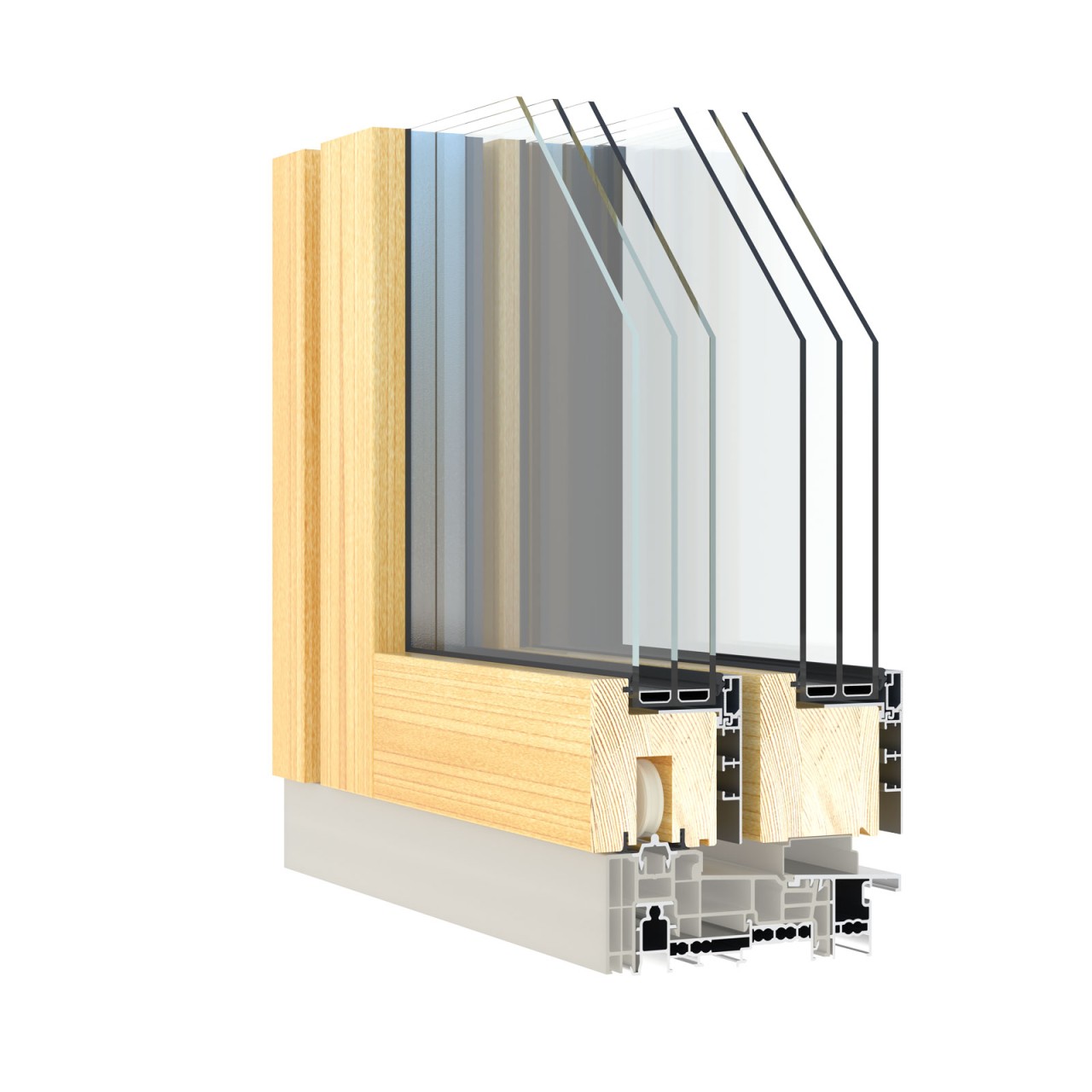

Aluminium Cladding Optional external alu claddin
Thermal transmittance Uw = 0,90 W/m²K (3-glazed); Uw = 1,40 W/m²K (2-glazed)
Number of sash gaskets 2 sash gaskets
Color of sash gaskets Black

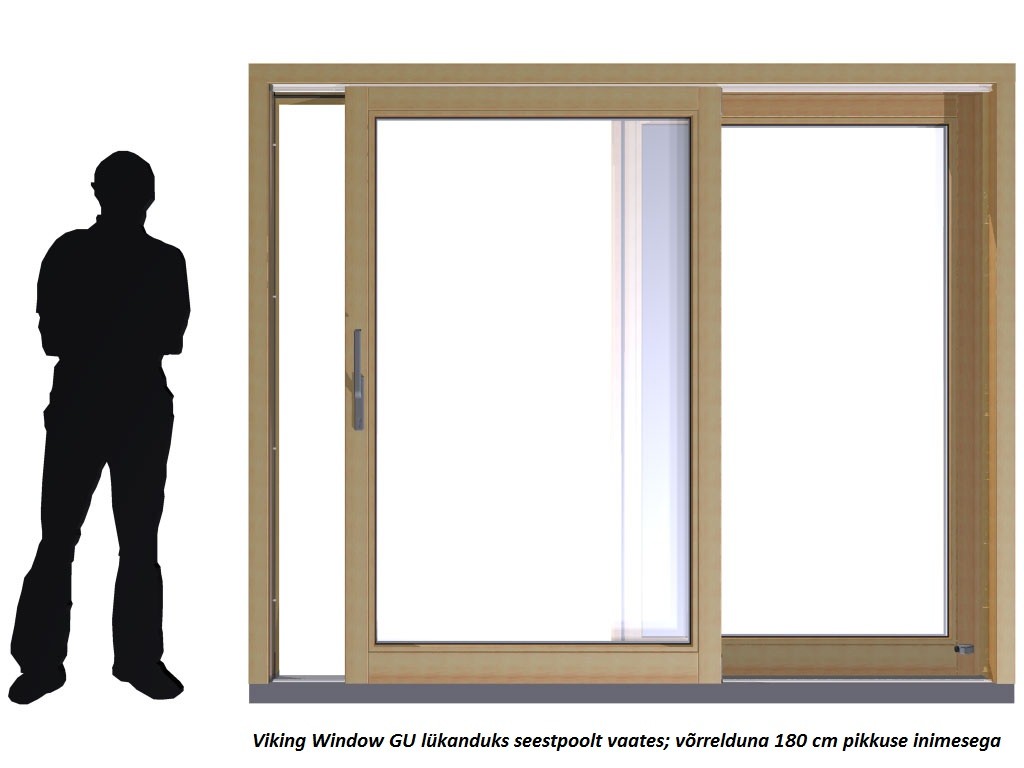

Dimensions

A-scheme:

W 5 900 mm x H 2 600 mm

C-scheme:

W 9 000 mm x H 2 600 mm

G-scheme:

W 5 900 mm x H 2 600 mm

NB! Possible to order as an assembly kit - final assembly on site.

A-scheme
C-shceme
C-shceme
G-scheme
G-scheme

Material of frame and sash

Glue-lam pine, Nordic timber quality class A1-A3

Finishing

Teknos Aquatop and/or VRC

RAL; NCS and translusent systems:

Värvivalik



Glasing options

Click on the picture below to browse for more:

glazing options 1

NB! GU Lift & Slide Patio Door construction has been upgraded since April 2018!



Drawings: Timber door PDF

Drawings: Aluclad door PDF

Drawings: Installation PDF

DWG Drwings (incl installation scteches)
