DK22 wooden window (2- and 3-glazing)
Standard Configuration
Passive houseAdditional Options
Sound insulation glasses
Safety
Sun protection
PAS24 solution option
near zero energy homeNote: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.
| Aluminium Cladding | Optional external alucladding |
| Glazing | 52 mm 3-glazing, two Low-E glasses and argon filled |
| Frame Depth | 90 mm |
| Sound Insulation | Rw = 34 dB (-2;-5) - with standard glasses |
| Material of Sash and Frame | Glue-lam pine; quality class A1-A3 |
| Number of sash gaskets | 2 sash gaskets |
| Color of sash gaskets | White, grey, beige, brown |
| Thermal transmittance | Uw = 0,77 W/m²K (1,23 x 1,48 m opening standard window) |
| Hardware | ROTO; Hoppe handle |
| Air tightness | Class 4 (600 Pa) |
| Water tightness | Class E1500 (1500 Pa) |
| Resistance to wind load | Class 5C (2000 Pa) |

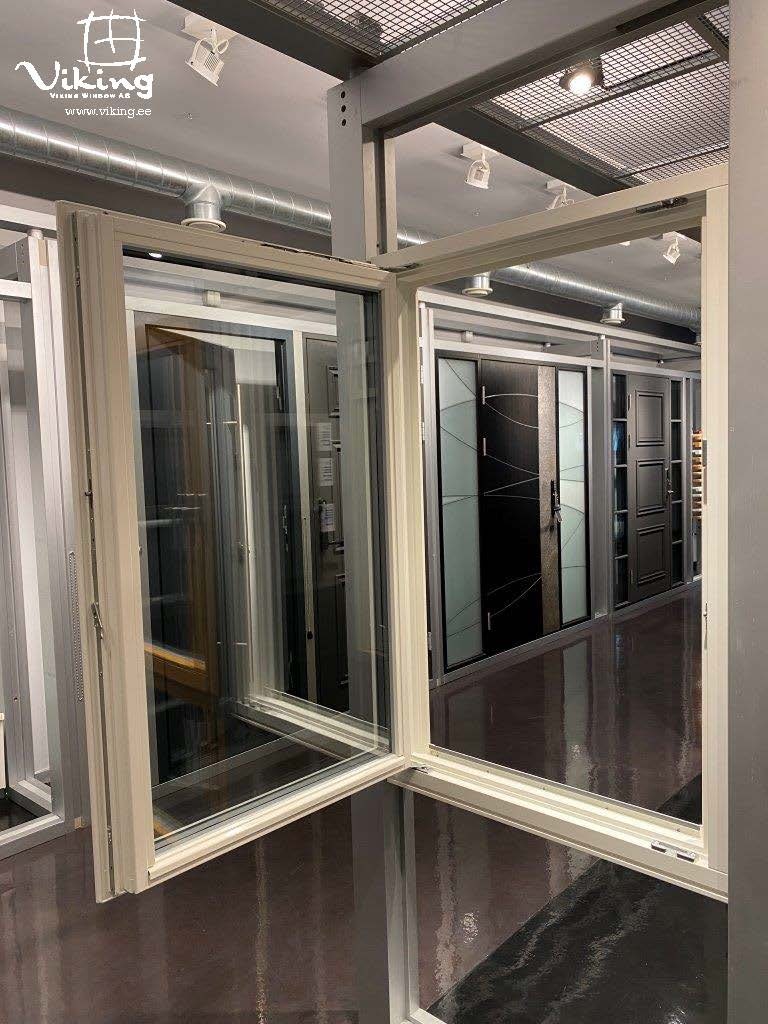

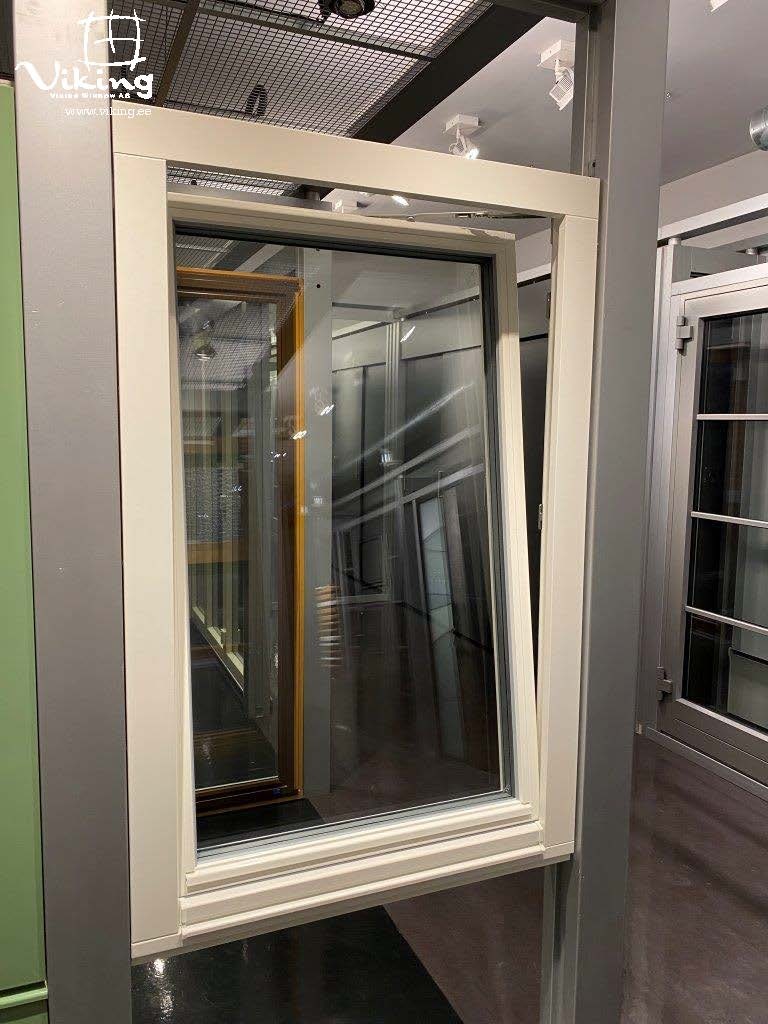

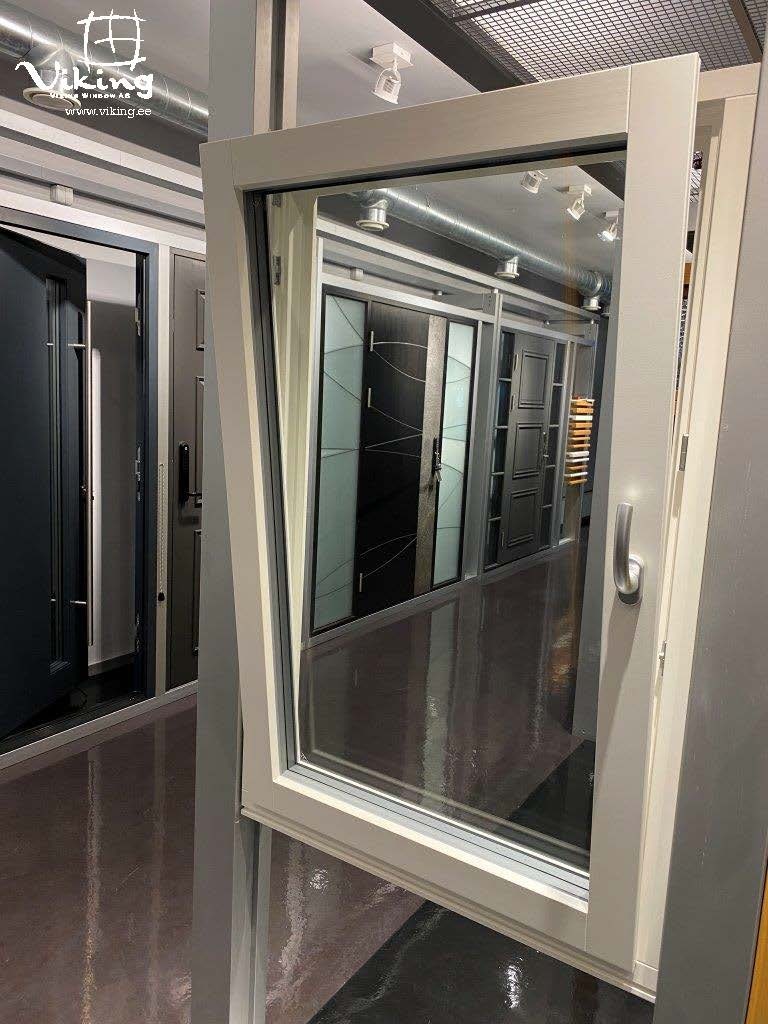

| Dimensions | Tilt and turn opening: Turn opening (sidehung): Tilt opening: Tilt before turn opening: (i.e TBT): |

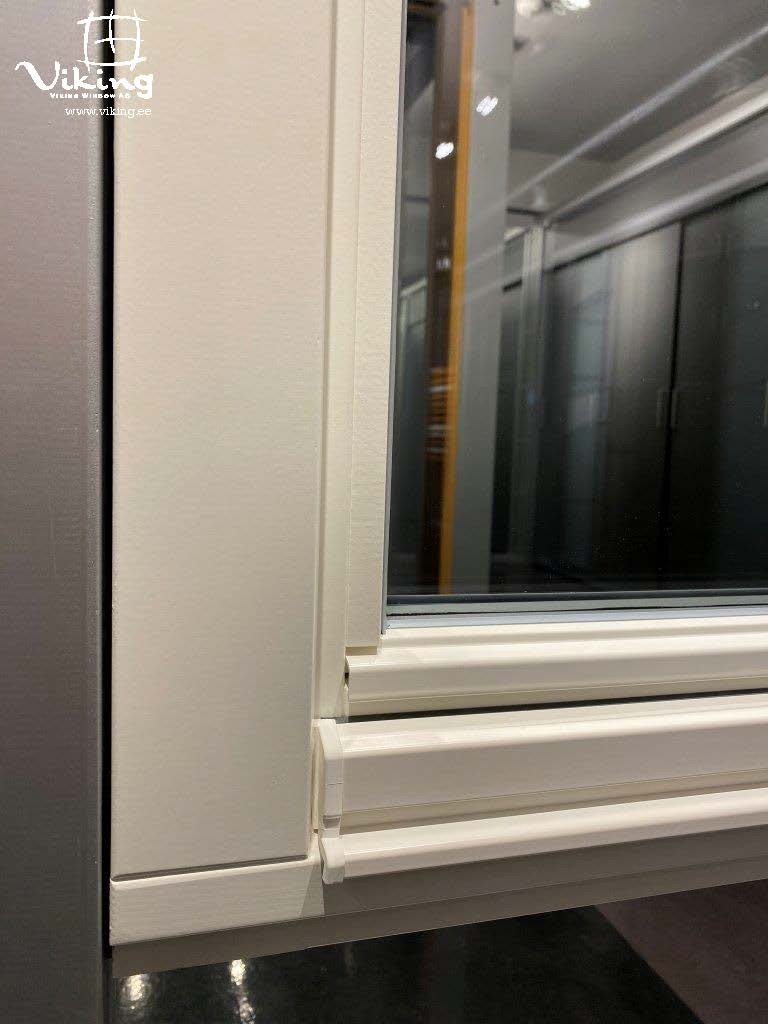

Material of frame and sash
Glue-lam pine, Nordic timber quality class A1-A3
Finishing
Teknos Aquatop
RAL; NCS and translusent systems:
Additional option
Low threshold balcony door
Glasing options
Click on the picture below to browse for more:
Glazing bar options on the glass
(Click on the icon to see larger image)
 |
 |
 |
 |
| Glazing bars (26 mm) 01-00-01 outside Norwegian, inside Norwegian |
Glazing bars (26 mm) 01-SWS-01 outside Norwegian, inside Norwegian + SWS |
Glazing bars (26 mm) 01-00-03 outside Norwegian, inside Swedish |
Glazing bars (26 mm) 01-SWS-03 outside Norwegian, inside Swedish + SWS |
 |
 |
 |
 |
| Glazing bars (26 mm) 03-00-03 outside Swedish, inside Swedish |
Glazing bars (26 mm) 03-SWS-03 outside Swedish, inside Swedish+ SWS |
Glazing bars (16 mm) 05-00-05 inside and outside 16mm bar |
Decorative glazing bar |
Selection of handles
(Click on the icon to see larger image)
 |
 |
 |
| Hoppe London 013S-U34 chromium satin | Hoppe London 013SV-U34 silver | Hoppe London 013-U34 golden |
 |
 |
 |
| Hoppe Tokyo 0710S-U26 chromium | Hoppe Tokyo 0710SV-U26 chromium satin | Hoppe Tokyo 0710-U26 champagne |
Window boards
| Fiber boards: | |||
 |
 |
 |
 |
| A 1.0 | A 1.1 | A 2.0 | A 2.1 |
 |
 |
 |
 |
| A 3.0 | A 3.1 | A 4.0 | A 4.1 |
| Wooden boards: | |||
 |
 |
 |
 |
| A 1.0 | A 1.1 | A 2.0 | A 2.1 |
 |
 |
 |
 |
| A 3.0 | A 3.1 | A 4.0 | A 4.1 |
Fly screens
Standard fly screen material is dark fiberglass mesh:
Illustrations below introduce different types of fly screens applicable for DK88 window and also alternative material solutions for the screens:
DK22 fly screen types:
 |
 |
 |
| Aluminium screen | Aluminium screen on hinges | Aluminium color options |
NB! For intward opening windows fly screens are fixed inside the frame in front of the sash or on the external side of frame - thus there must remain sufficient space for the screen frames. Please discuss with the sales representative any further, more detailed quiestions!
Click on the picture below to browse different net materials:

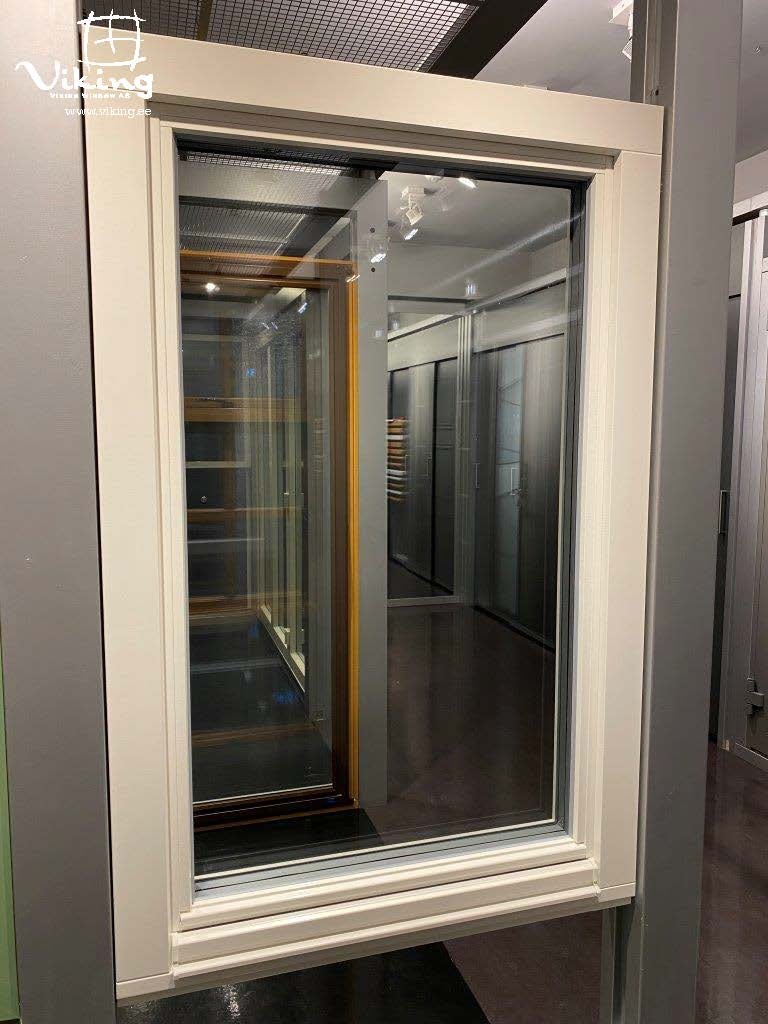

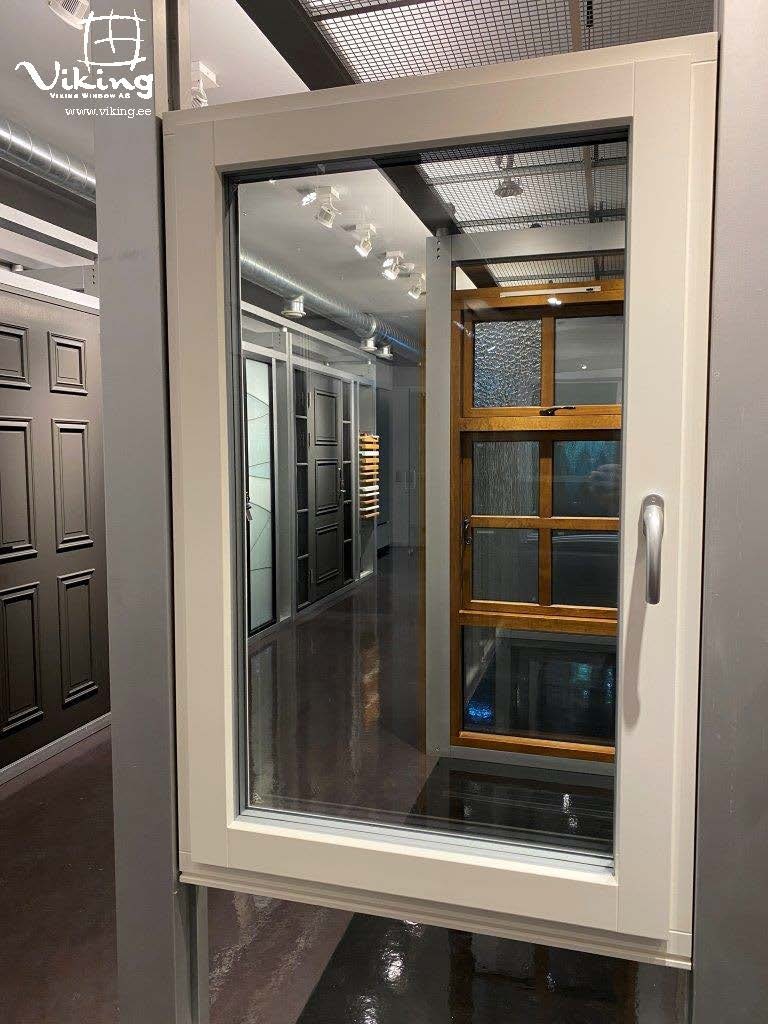

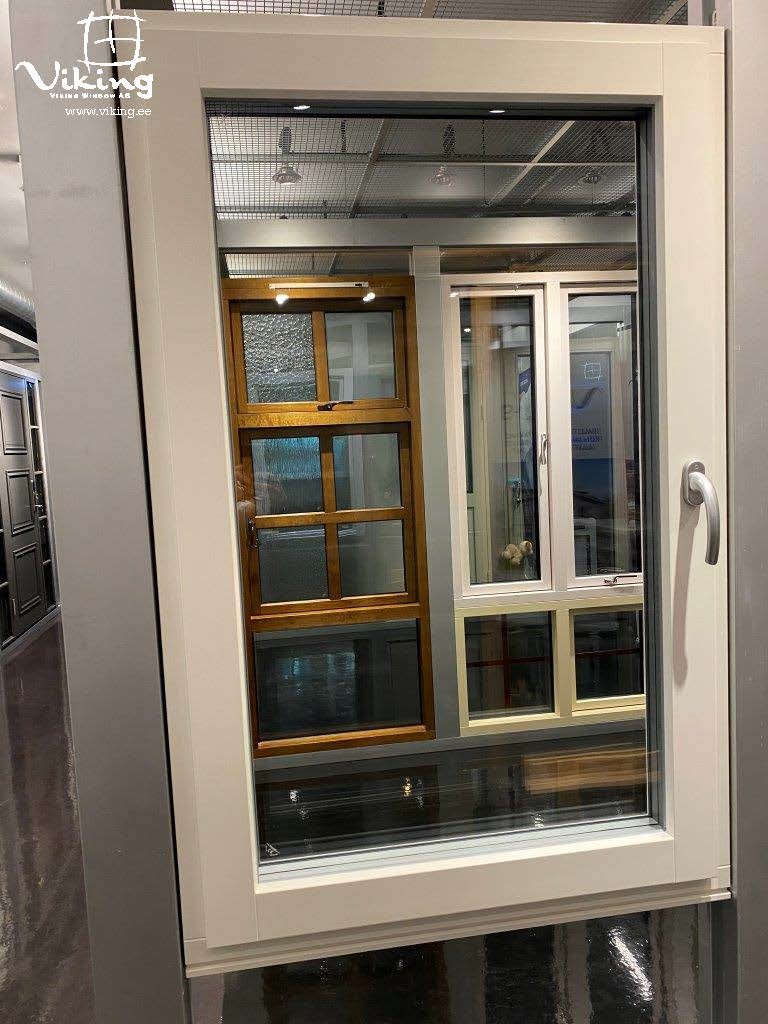

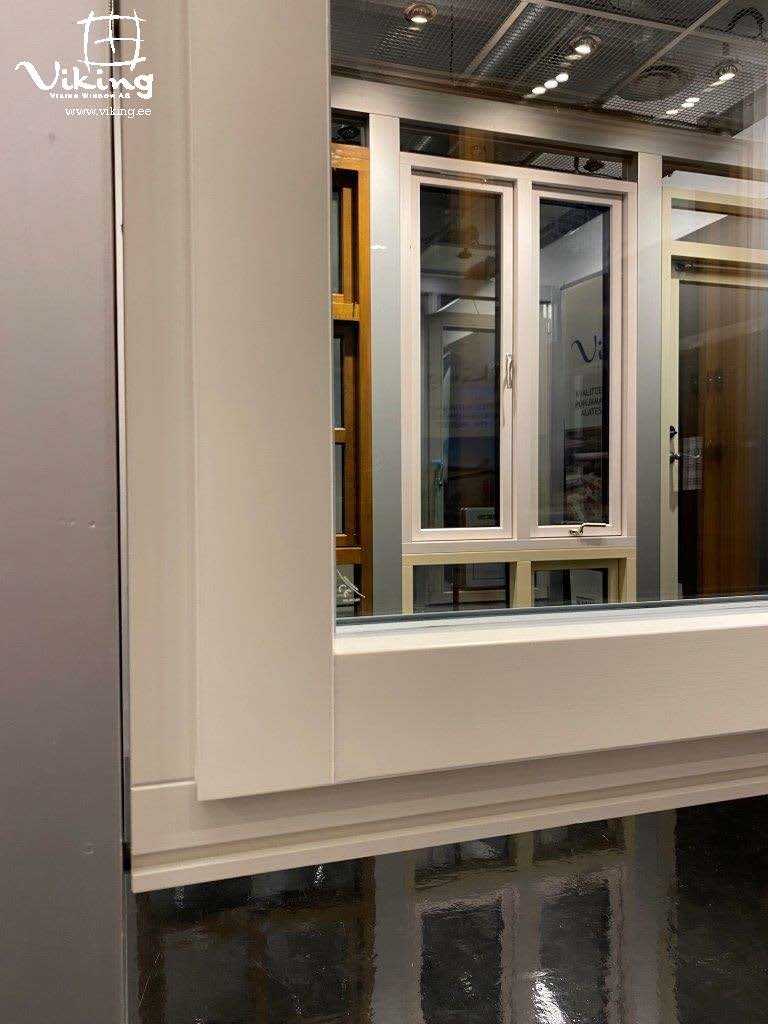

DK22 inward opening tilt and turn window has slim wooden profiles providing better energy effiency, solar and light gains.
For houses with high energy efficiency Viking Window has developed new inward opening DK22 window with 90 mm profiles. It has thermal transmittance value of Uw = 0.77 W/m²K (0.72 W/m2K for fixed light window).
Glazing units and hardware:

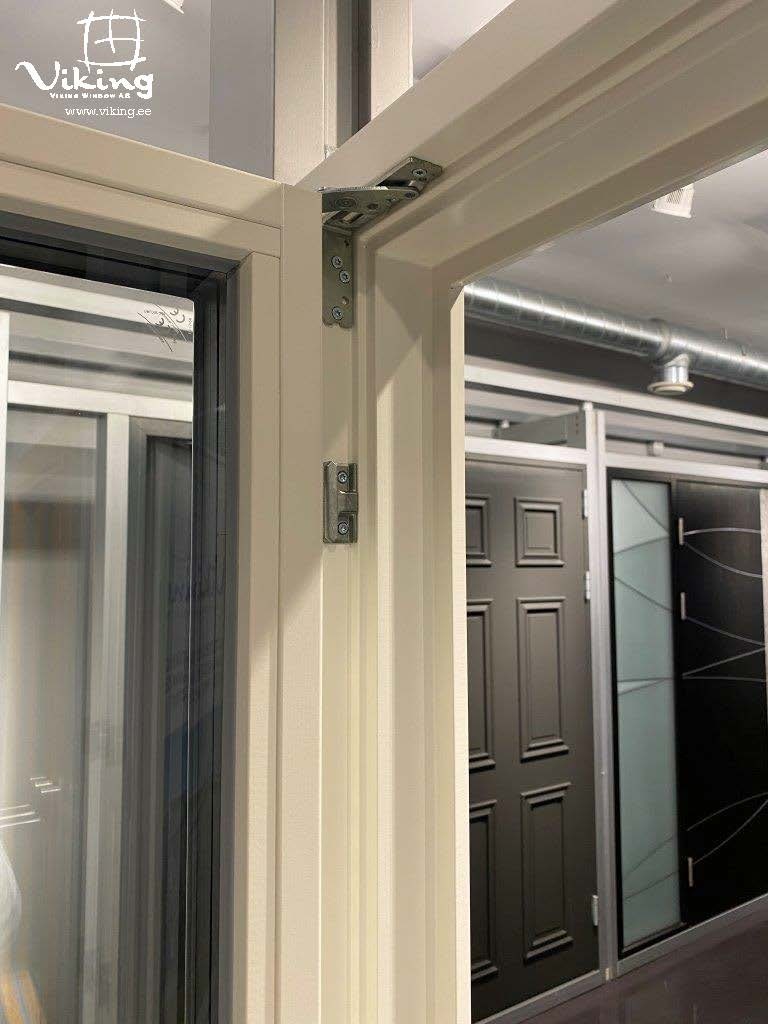

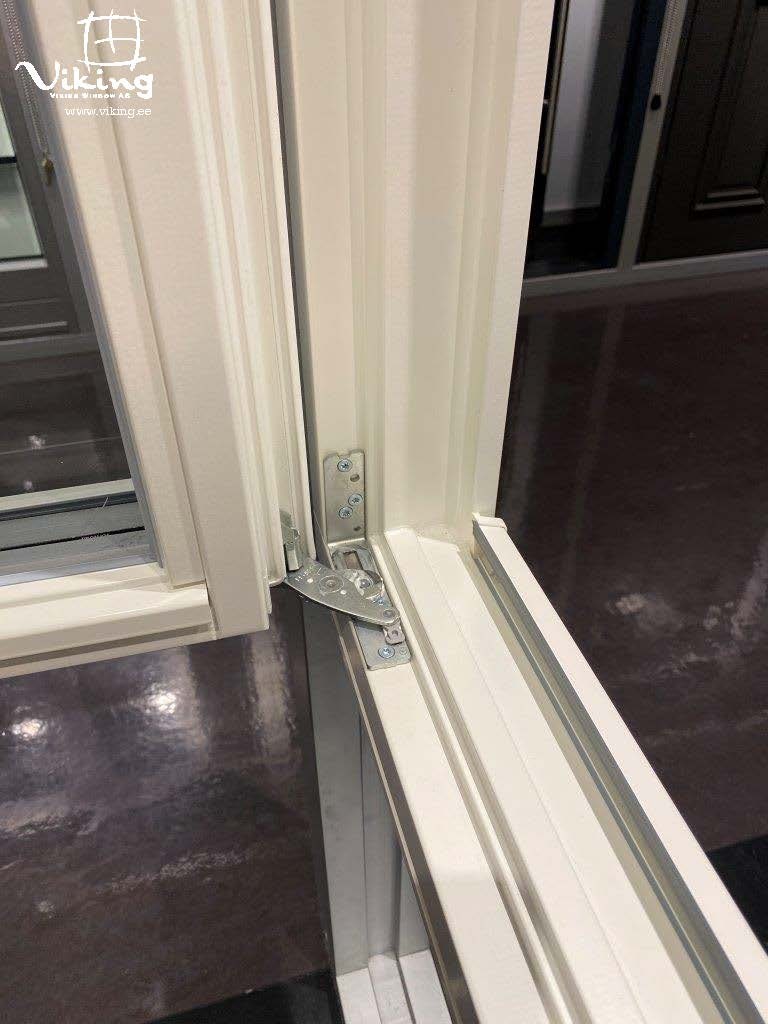

Viking DK22 windows are equipped with the Argon filled insulated glazing unit with two low-E glasses and SGG Swisspacer Ultimate warm edge solution; Ug = 0,52 W/m²K. It has ROTO hardware and Hoppe handles and optionally one can choose version with concealed hinges.
