SW17 Profile Door (3-glazing)

Product code: UVP-SW17

Standard Configuration

NEAR ZERO ENERGY HOMENEAR ZERO ENERGY HOME

Additional Options

Sound insulation glassesSound insulation glasses
Sun protectionSun protection
PAS24 solutionPAS24 solution

Note: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.

Aluminium Cladding Optional external alucladding
Glazing 48 mm 3-glazing; 2 LowE glasses, argon filled
Frame Depth Variable: 92...120 mm (94 - 122 mm with alucladding)
Sound Insulation Rw = 33 dB (-2;-5) - standard glazing
Material of Sash and Frame Glue-lam pine; quality class A1-A3; fiber/oak threshold
Number of sash gaskets 1 gasket on door leaf, additional gasket on door frame
Color of sash gaskets Grey
Thermal transmittance Uw = 0,80 W/m²K (0,9 x 2,1 m door with standard glazing)
Hardware Simonswerk hinges (balcony door with ASSA hinges); ASSA or Maco espagnolette and handle
Security PAS24 solution option
Dimensions

Door leaf: W 550 - 1073 mm; H 1651 - 2390 mm

Material of frame and sash

Frame: Glue-lam pine; quality class A1-A3

Door leaf: profile door of glue-lam pine; quality class A1-A3

Finishing

Teknos Aquatop

varvikaart 300px

RAL; NCS and translusent systems:

Värvivalik

Glasing options

Click on the picture below to browse for more:

glazing options 1

Glazing bar options

COPY of SW11 aken 02 small COPY of SW11 puitaluaken 02 small

Selction of handles


1918c

1918m

1918mm

1918to
ASSA 1918 chromium ASSA 1918 brass ASSA 1918 matte barss ASSA 1918 dark oxide


1956c

1956m

1956mm

1956to
ASSA 1956 chromium ASSA 1956 brass ASSA 1956 matte brass ASSA 1956 dark oxide


6638c

6638m

6638mm

6638to
Assa 6638 chromium Assa 6638 brass Assa 6638 matte brass Assa 6638 dark oxide


assa6640c

assa6640m

assa6640mm

assa6640to
Assa 6640 chromium Assa 6640 brass Assa 6640 matte brass Assa 6640 dark oxide








Profile doors:

Profile door leaves are assembled of glue-lam timber profiles. Insulated glazing of panels can be used.



Available door designs (click on the images below to see more):



3-glazed doors

3glz prof door designs 480px

Outward Opening Doors:

Entrance Doors

Drawings: Profile door PDF and DWG

Drawings: Aluclad door PDF and DWG



"Slim" Balcony Doors:

Drawings: Timber door PDF and DWG

Drawings: Aluclad door PDF and DWG



Inward Opening Doors:

Drawings for timber doors: Profile door PDF;

Drawings for aluclad doors: Aluclad profile door PDFrofile door PDF;

Drawings DWG

SW17 Entrance Door is a suitable match to SW17 windows. With 48 mm 3-glazing unit or insulated panel it's possible to achive overall U-value U = 0,80 W/m2K.


Entrance Doors

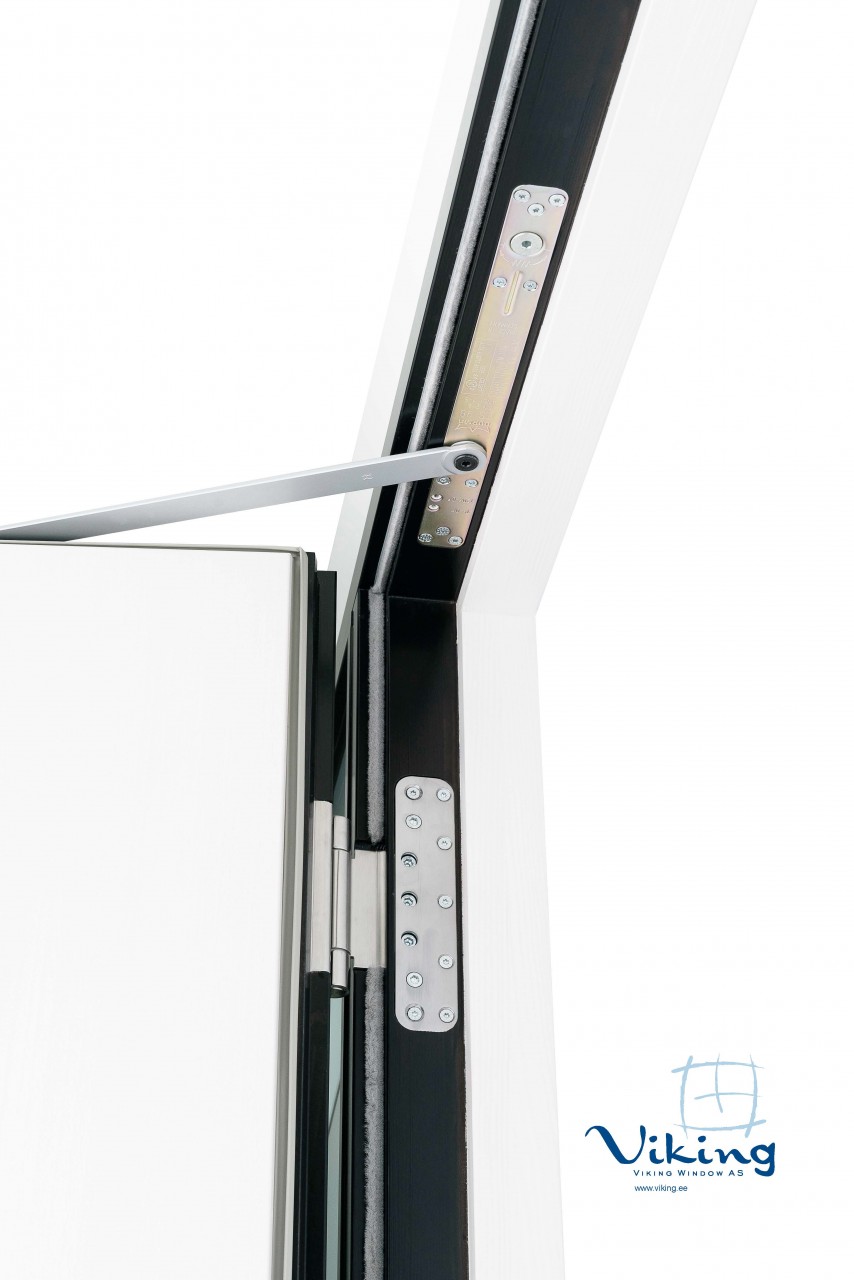

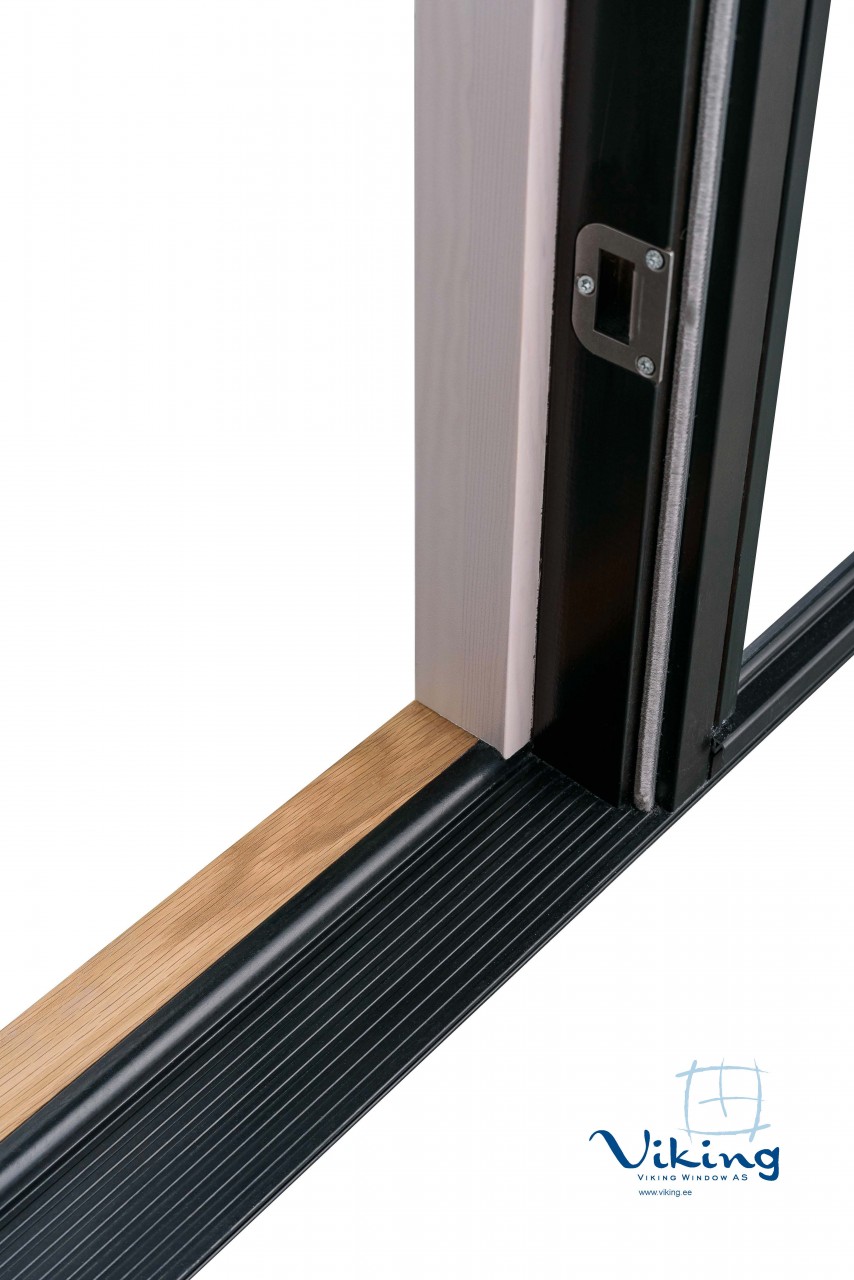

SW17 Door is either outward opening or inward opening. Door leaf is made of high quality glue lam pine profiles. It uses hardware system provided either by Swedish manufacturer ASSA or by German manufacturer Maco. SW17 door hinge is 3D adjustable stainless steele Simonswerk. Availble as single or double leaf doorset, fiber threshold, wide selection of fihishing.

New design enables us to provide side lights together with the door set - i.e in the same frame.

Besides of glazing units, insulated sandwitch panels can be used. Profile door is available both as wooden and aluclad version.

For different designs, see the gallery righ; for more designs consult with sales representative.



Balcony Doors

Balcony door profile system is slimmer, following more the window design. Hardware is Ipa espagnolette and ASSA hinges.
