Note: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.
|Aluminium Cladding||Optional external alucladding|
|Glazing||48 mm 3-glazing; 2 LowE glasses, argon filled|
|Frame Depth||Variable: 92...120 mm (94 - 122 mm with alucladding)|
|Sound Insulation||Rw = 21 dB|

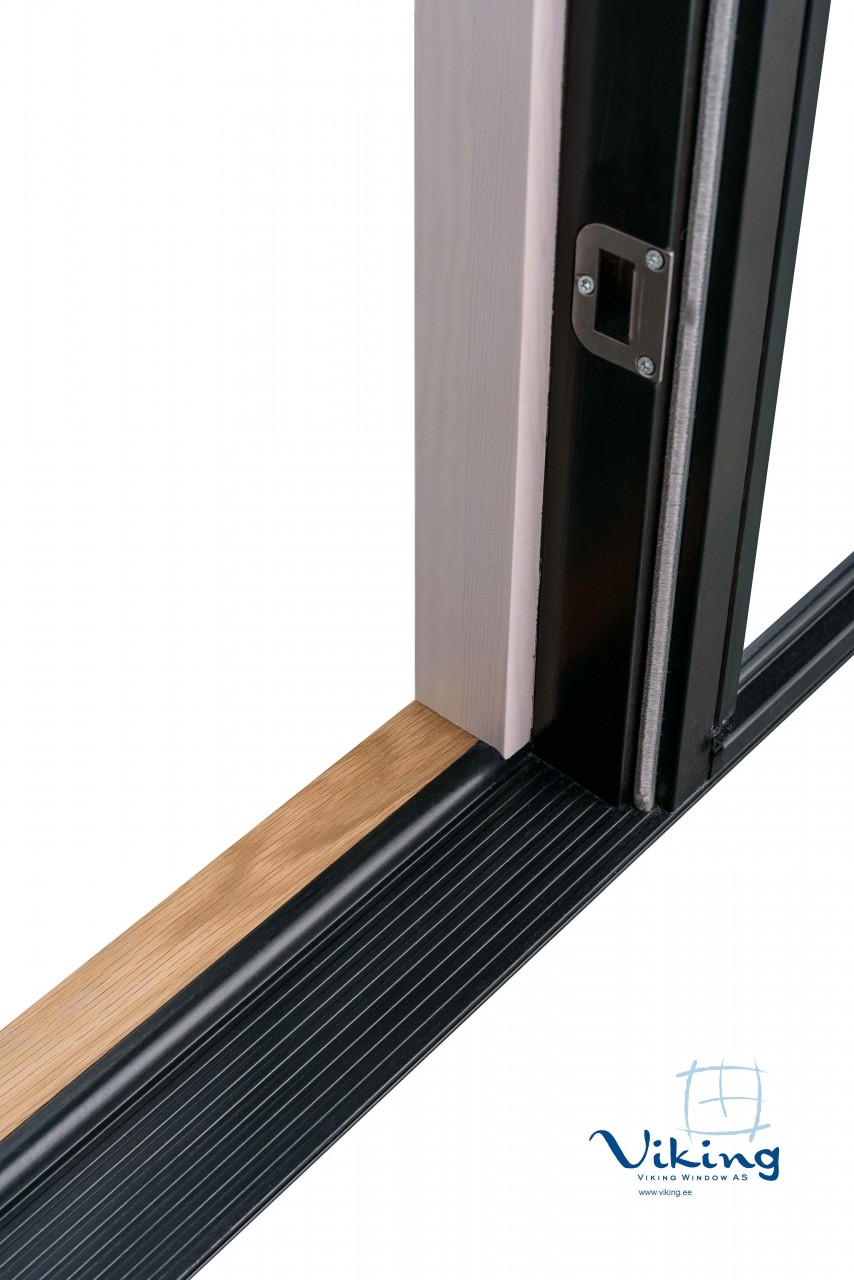

|Material of Sash and Frame||Door leaf: insulated panel; door frame: qlue-lam pine; quality class A1-A3; fiber/oak threshold|
|Number of sash gaskets||1 gasket on door leaf, additional gasket on door frame|
|Color of sash gaskets||Grey|
|Thermal transmittance||Uw = 0,80 W/m²K (0,9 x 2,1 m door with standard glazing)|

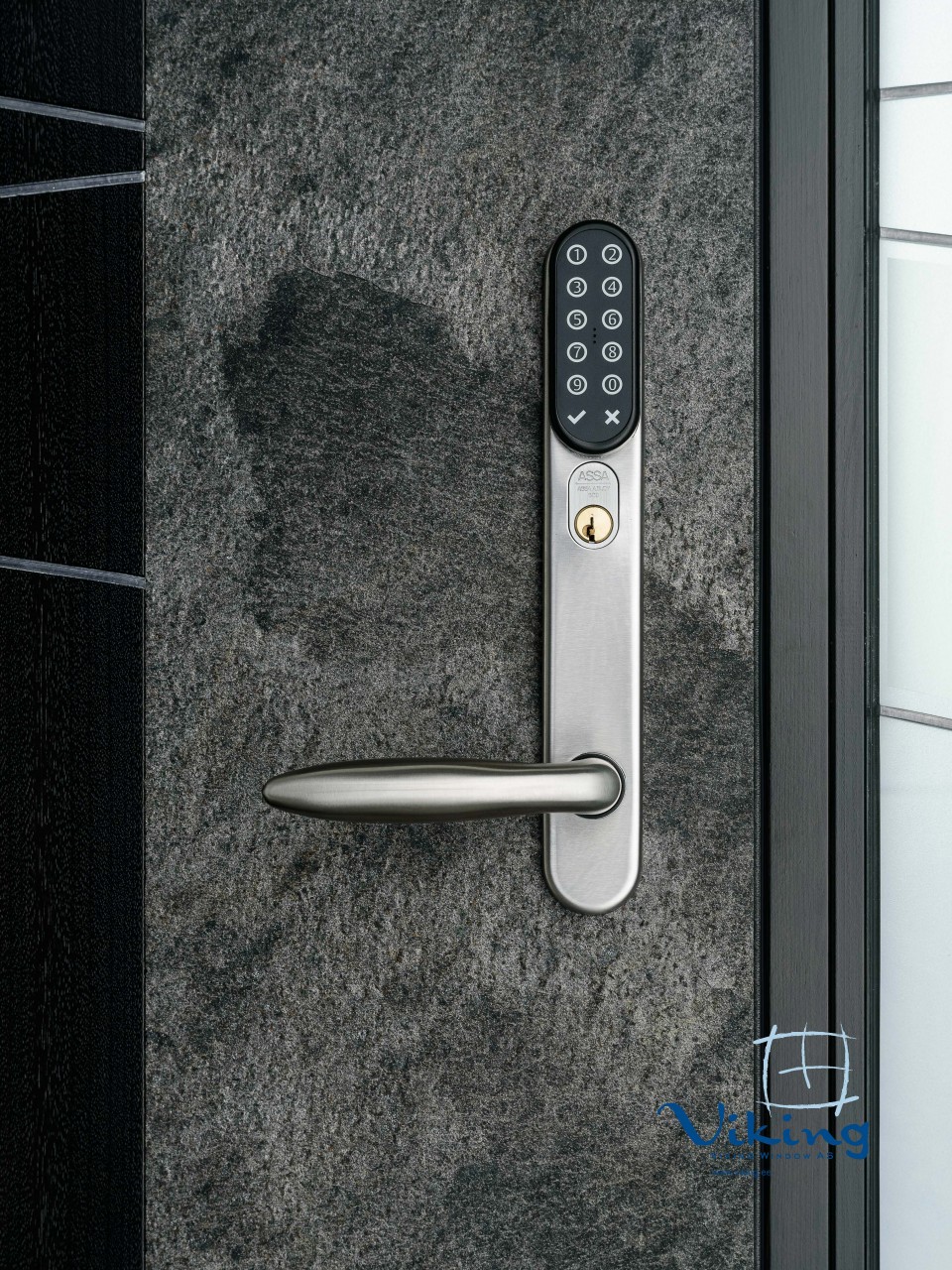

|Hardware||Simonswerk hinges (balcony door with ASSA hinges); ASSA or Maco espagnolette and handle|
|Security||PAS24 solution option|
|Air tightness||Class 4 (600 Pa)|
|Water tightness||Class 9A (600 Pa - outw.op); class 5A (200 Pa - inw.op)|
|Resistance to wind load||Class 4C (1600 Pa)|
Door leaf: W 550 - 1073 mm; H 1651 - 2390 mm
Panel door leaf is a composite product of timber frame covered with weather proof plywood "skins" (including moisture protection) and filled with insulation material. With the modern CNC technology different grooves and glazing options can be used for design purposes.

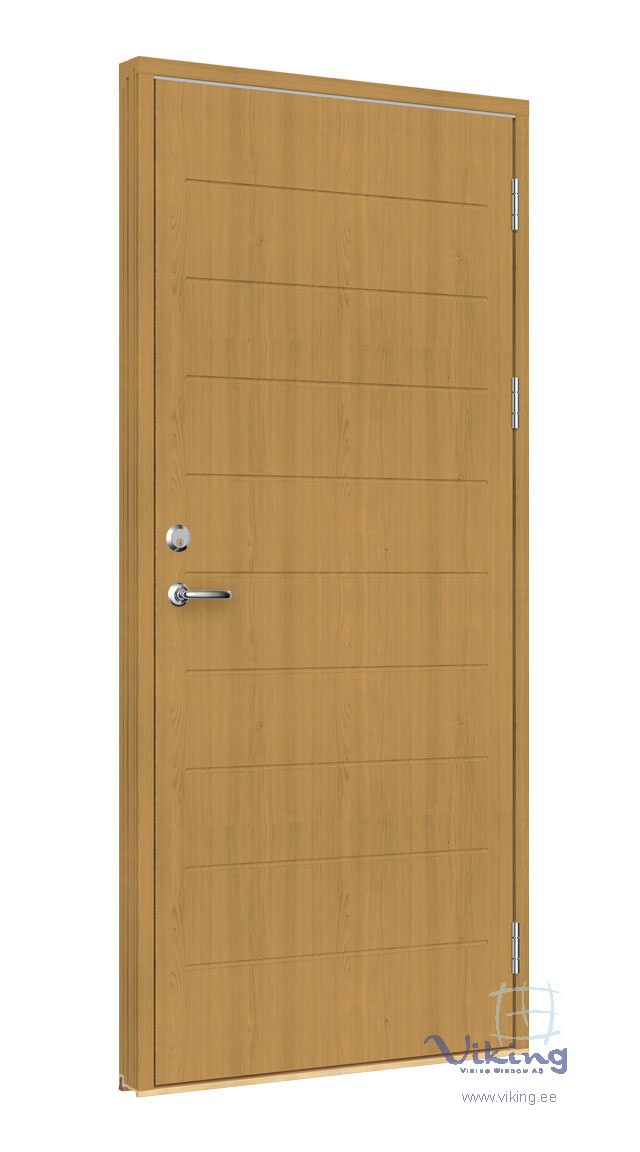

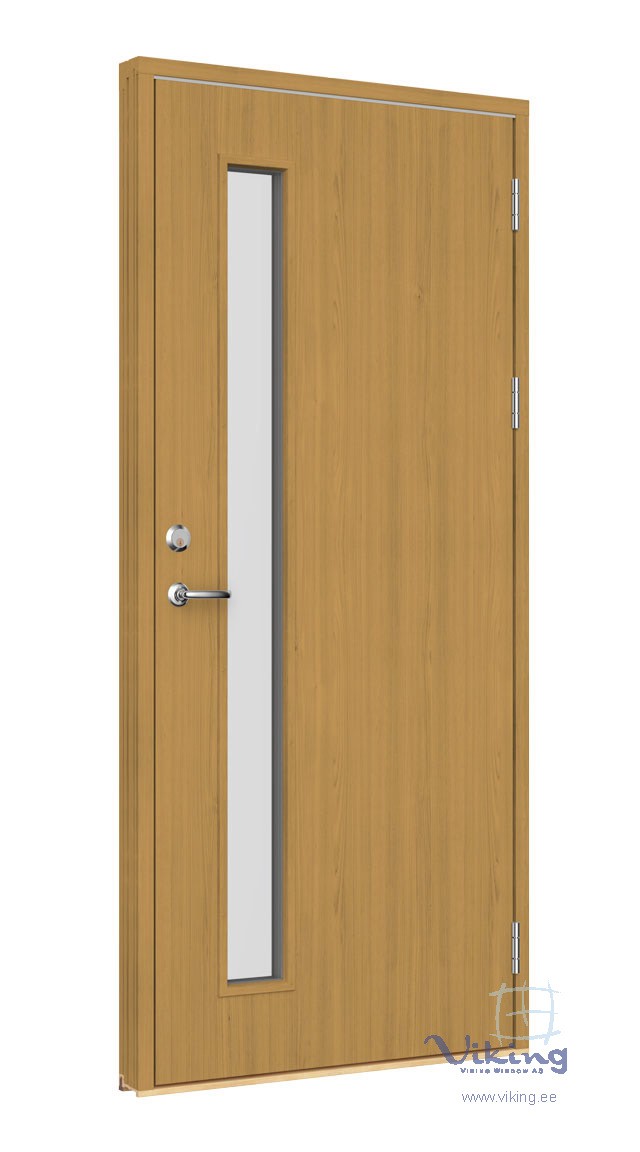

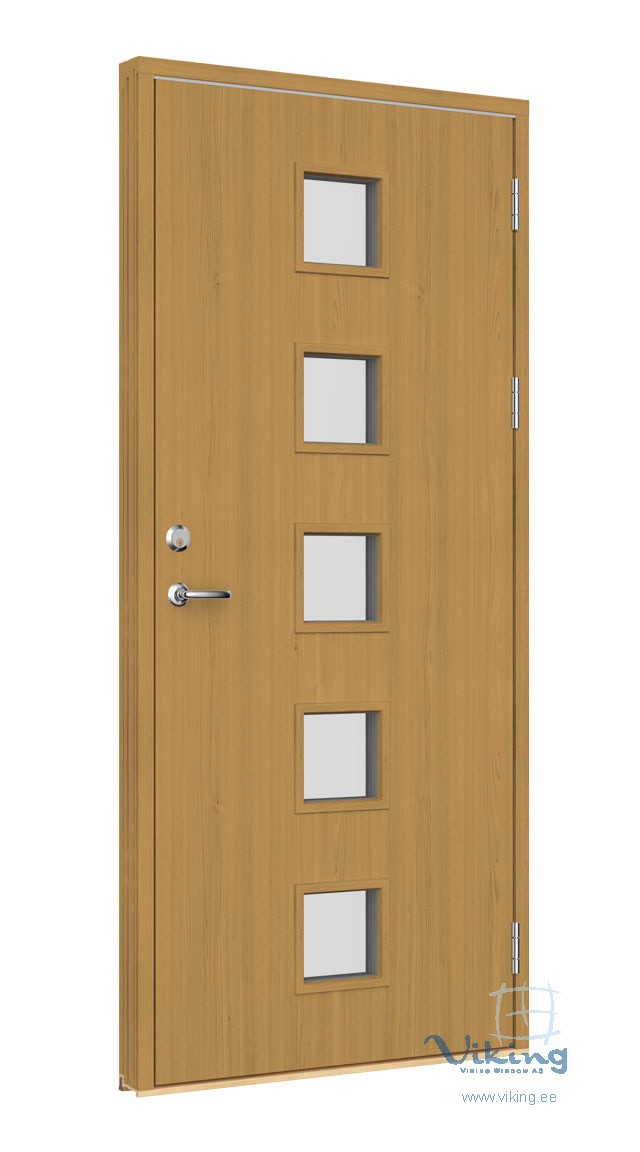

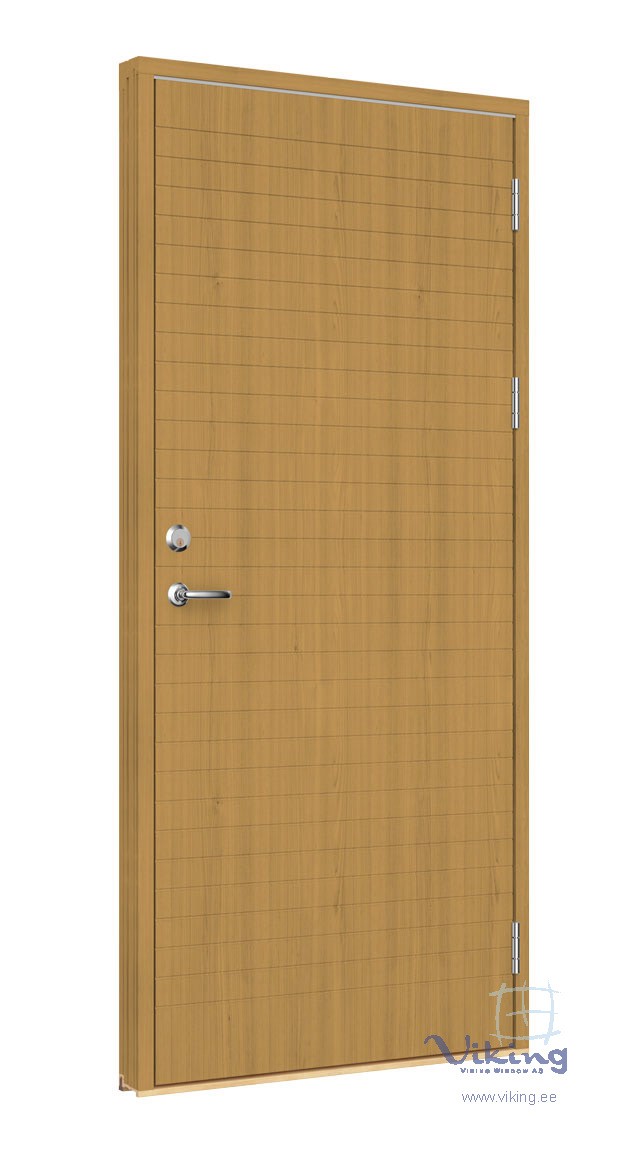

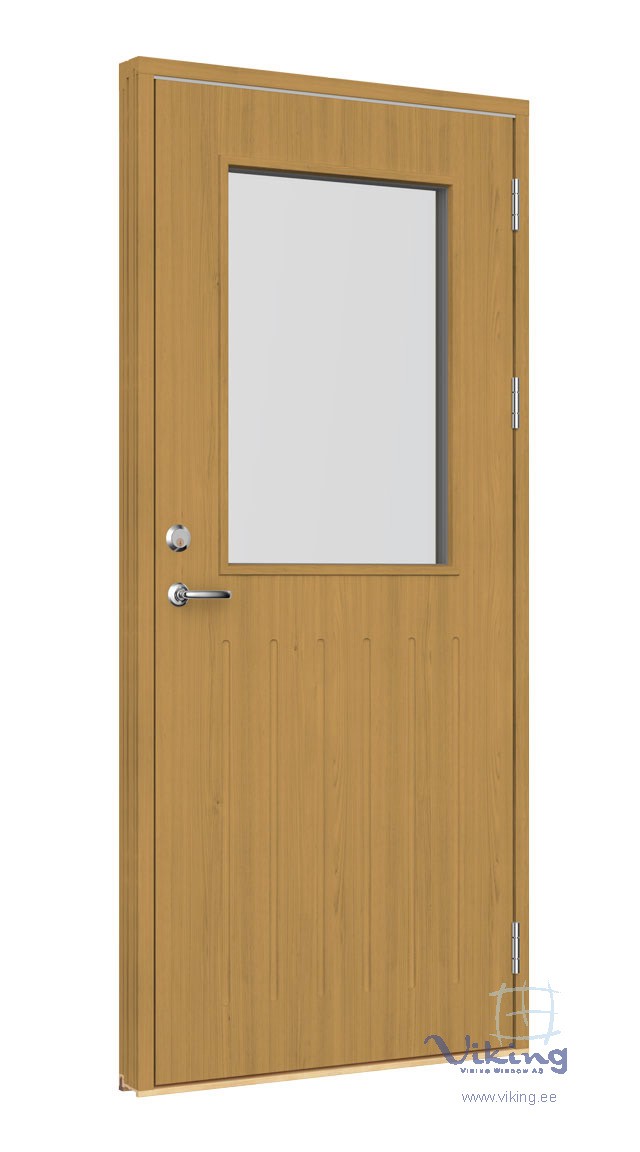

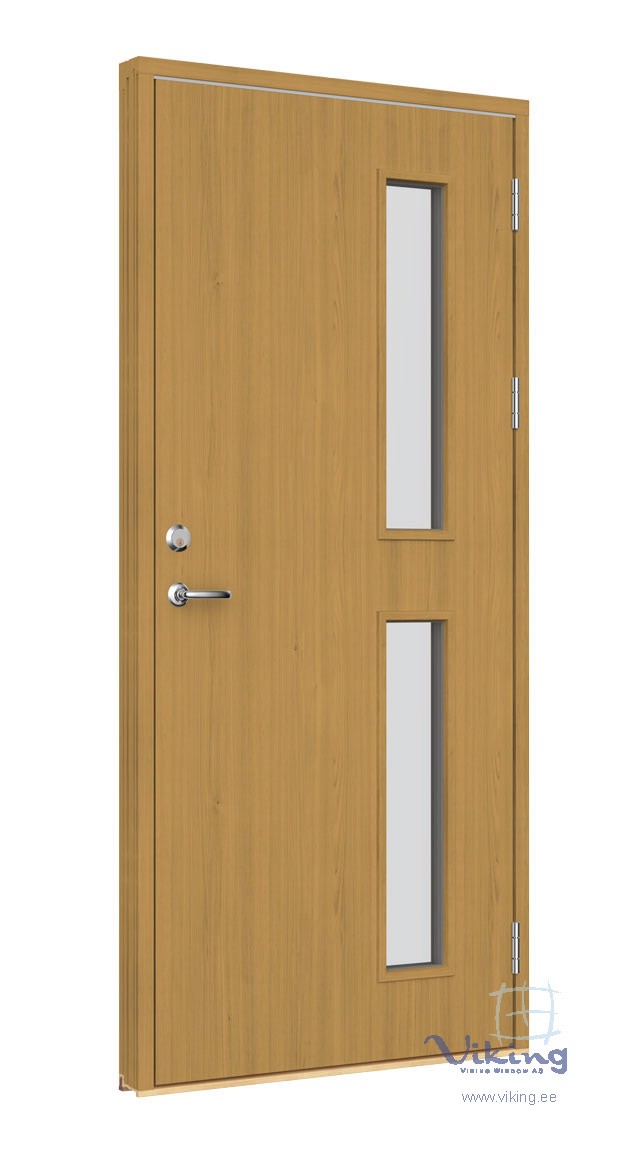

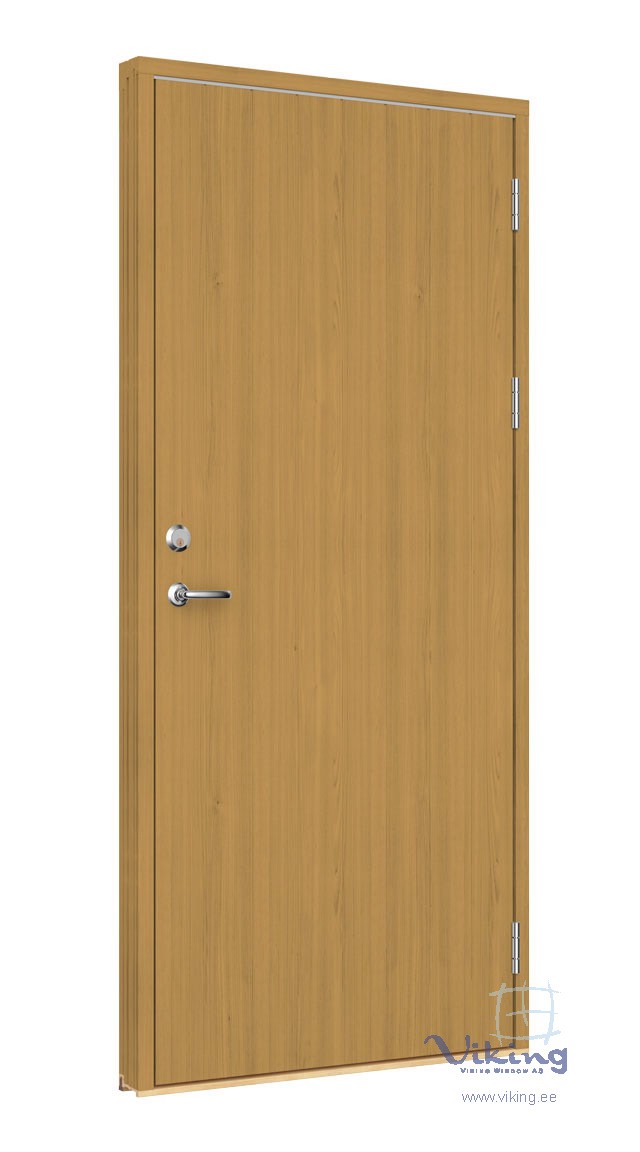

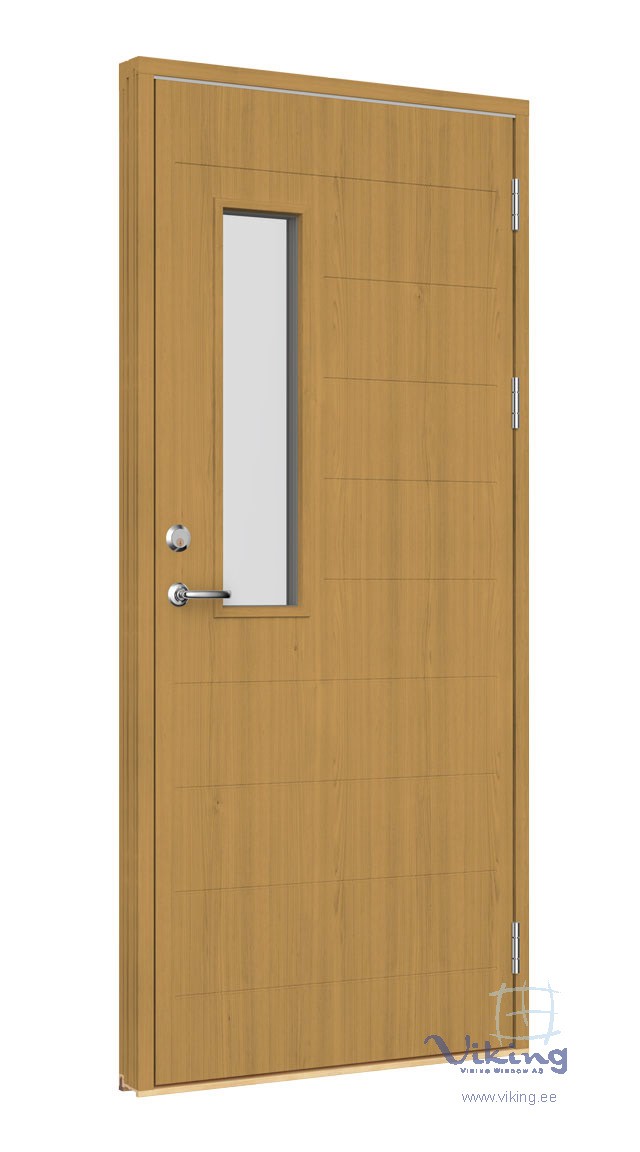

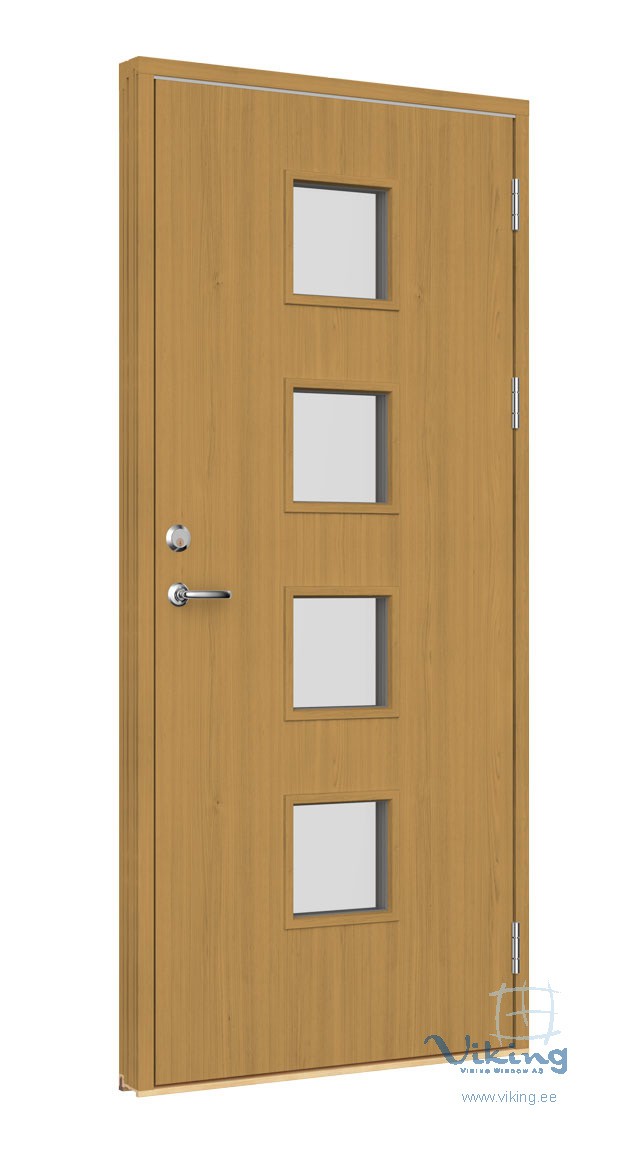

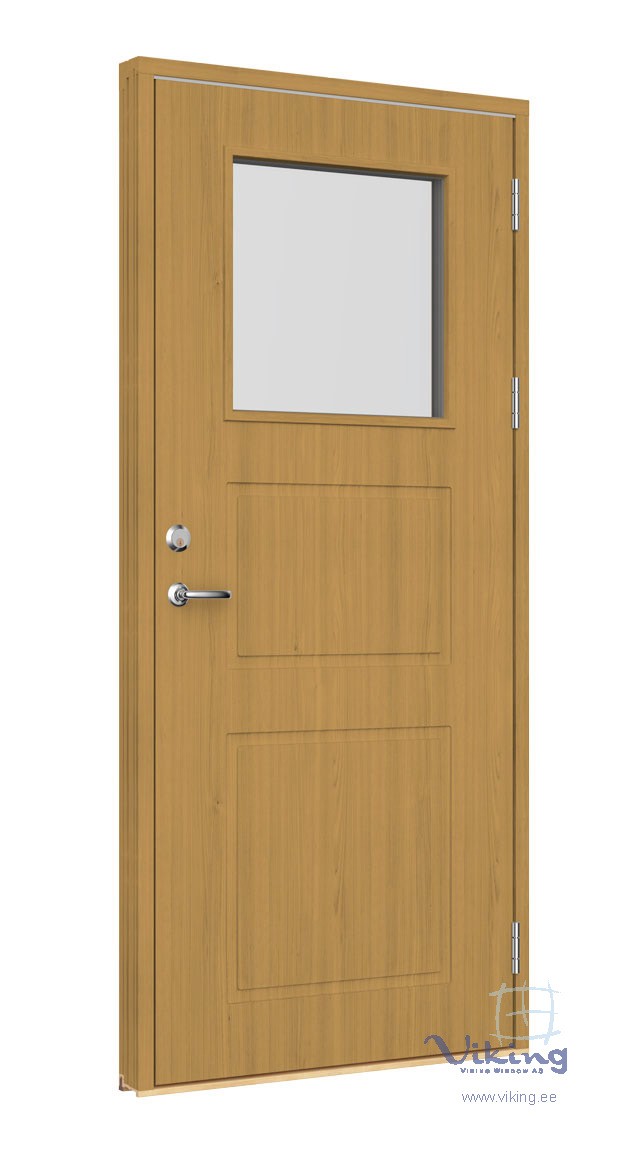

Click on the image below to see standard design options:
** Pattern on both sides
SW17 Entrance Door is a suitable match to SW17 windows. With 48 mm 3-glazing unit or insulated panel it's possible to achive overall U-value U = 0,80 W/m2K.

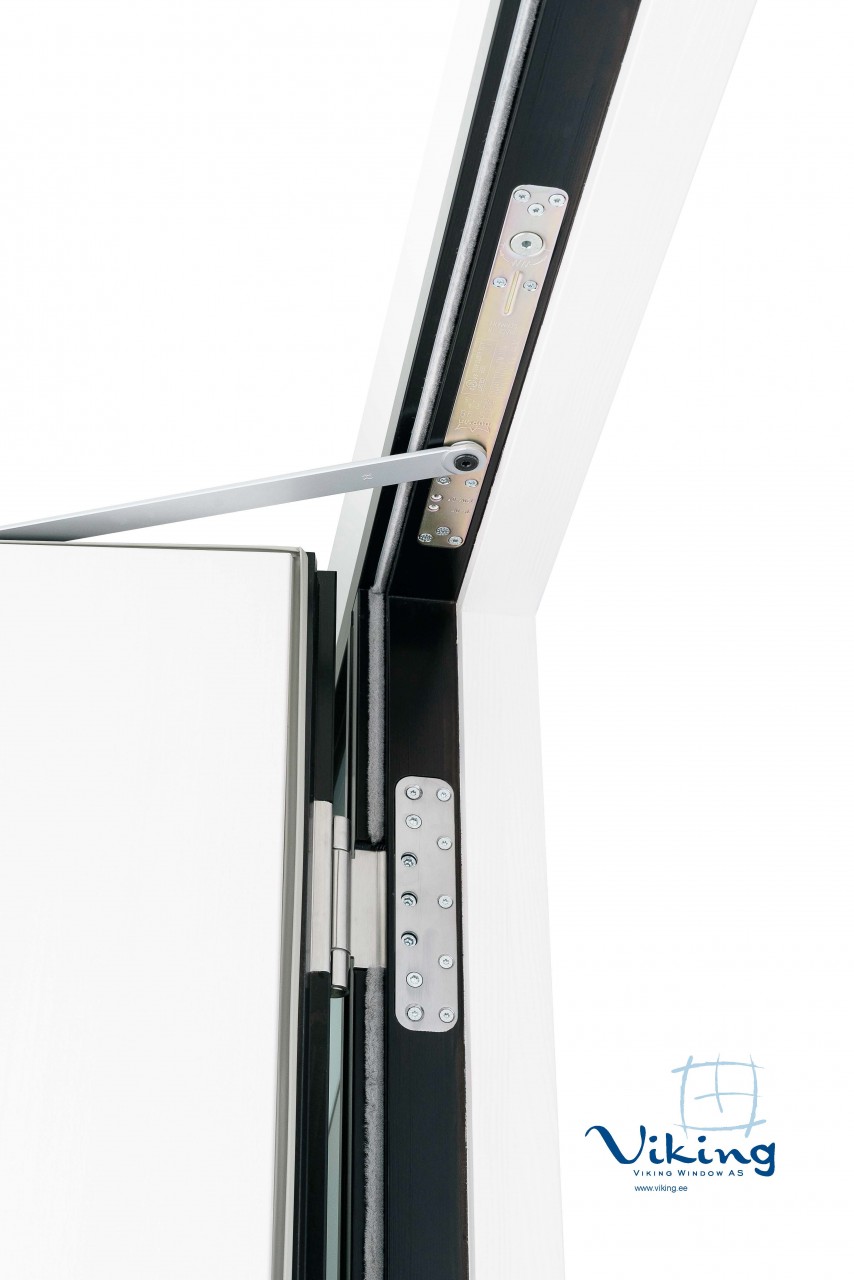

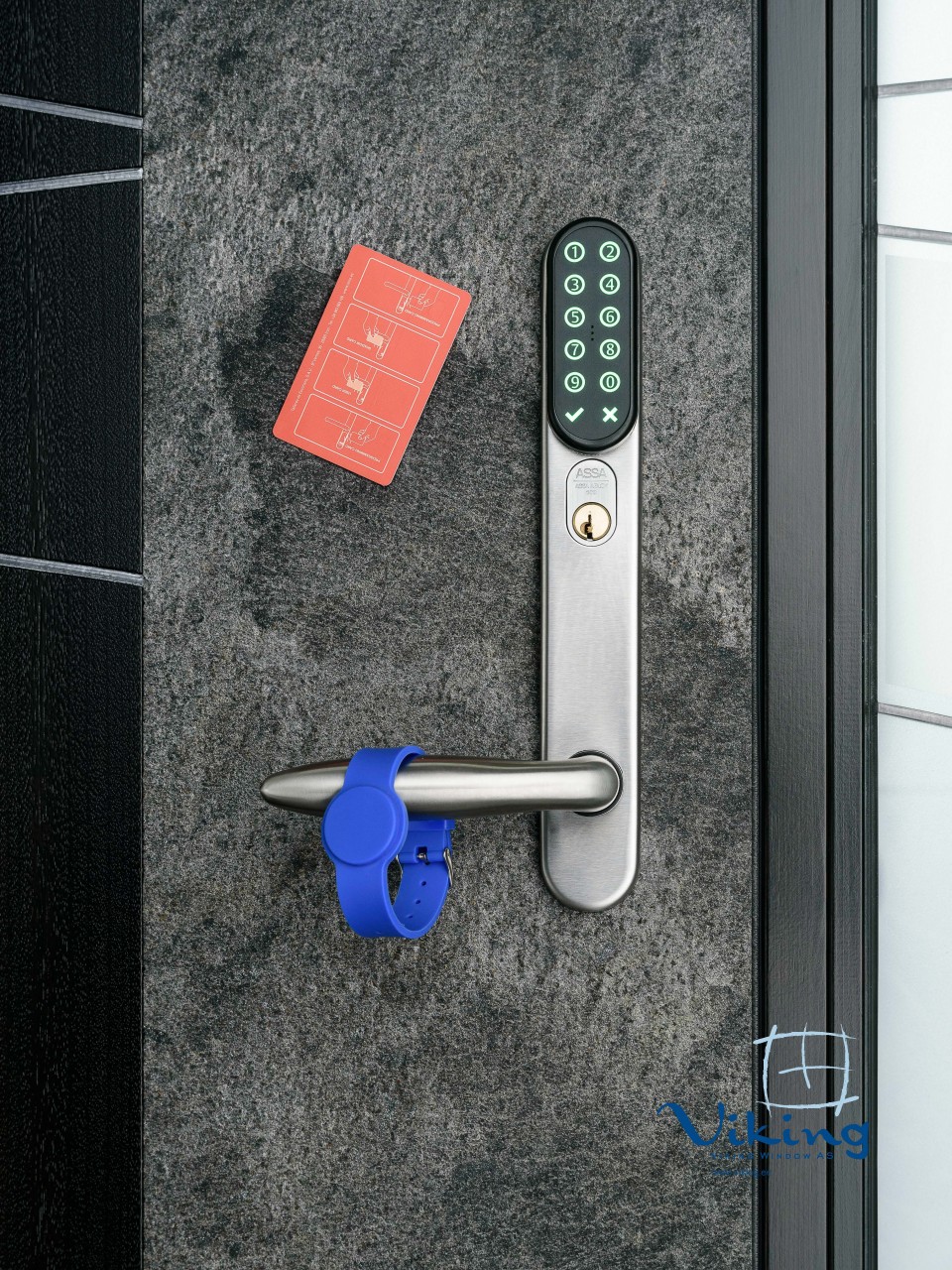

SW17 Door is either outward opening or inward opening. Door leaf is made of 78 mm insulated door panel. It uses hardware system provided either by Swedish manufacturer ASSA or by German manufacturer Maco. SW17 door hinge is 3D adjustable stainless steele Simonswerk. Availble as single or double leaf doorset, fiber threshold, wide selection of fihishing.
New design enables us to provide side lights together with the door set - i.e in the same frame.
For different designs, see the gallery righ; for more designs consult with sales representative.
Balcony door profile system is slimmer, following more the window design. Hardware is Ipa espagnolette and ASSA hinges.
